A good PCB layout for the UCC28056BDBVR involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing loop areas to reduce EMI. TI provides a recommended layout in the datasheet and application notes.
Choose external components based on the specific requirements of your design, such as output voltage, current, and frequency. TI provides guidelines and recommendations for component selection in the datasheet and application notes. You can also use online tools and calculators to help with component selection.
Common pitfalls include incorrect pin connections, inadequate decoupling, and poor PCB layout. To troubleshoot issues, start by verifying the power supply voltage, checking for proper pin connections, and ensuring that the input voltage is within the recommended range. Use oscilloscopes and other tools to debug the circuit and identify the root cause of the issue.
Ensure the UCC28056BDBVR operates within its SOA by monitoring the junction temperature (TJ) and keeping it below the maximum rating (150°C). Use thermal design and simulation tools to estimate the junction temperature, and implement thermal protection mechanisms, such as thermal shutdown, to prevent overheating.
Yes, the UCC28056BDBVR can be used in a synchronous rectification topology. This configuration can improve efficiency, reduce power losses, and increase the overall performance of the converter. However, it requires careful design and layout considerations to ensure proper operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28056BDBVR Overview

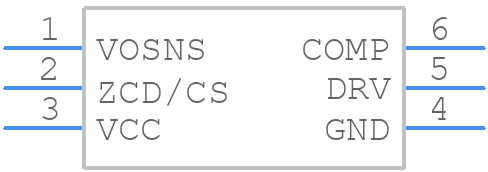

Use the download button to access the UCC28056BDBVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
