A good PCB layout for the UCC28061DR involves keeping the high-frequency switching nodes (e.g., SW node) away from sensitive analog nodes, using a solid ground plane, and minimizing loop areas. TI provides a recommended layout in the datasheet and application notes.
Choose components based on the specific requirements of your design, such as output voltage, current, and frequency. TI provides guidelines and examples in the datasheet and application notes. You can also use online tools, such as TI's Power Stage Designer, to help with component selection.
The UCC28061DR has a maximum junction temperature of 150°C. Ensure reliable operation by providing adequate heat sinking, using a thermal pad, and following TI's thermal design guidelines. You can also use thermal simulation tools to estimate junction temperature.
The UCC28061DR has a built-in OCP and SCP feature. Implement OCP by setting the OCSET pin to the desired current limit, and SCP by using the SCP pin to detect short-circuit conditions. Refer to the datasheet and application notes for detailed implementation guidelines.
To ensure EMI compliance, use a combination of filtering components (e.g., common-mode chokes, capacitors) and shielding techniques. Follow TI's EMI design guidelines and consult regulatory standards (e.g., CISPR, FCC) for specific requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28061DR Overview

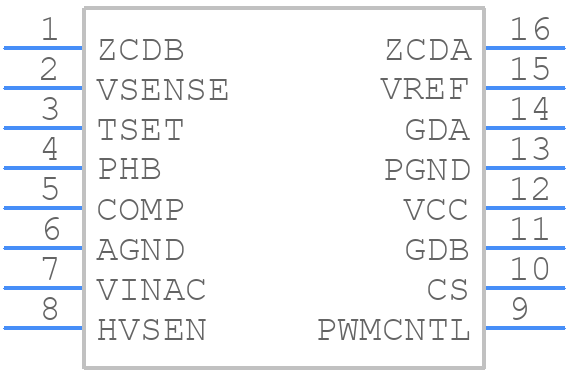

Use the download button to access the UCC28061DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
