UCC28063AD - Texas Instruments

Description: Natural Interleaving Transition-Mode PFC Controller with Improved Audible Noise Immunity

Download UCC28063AD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

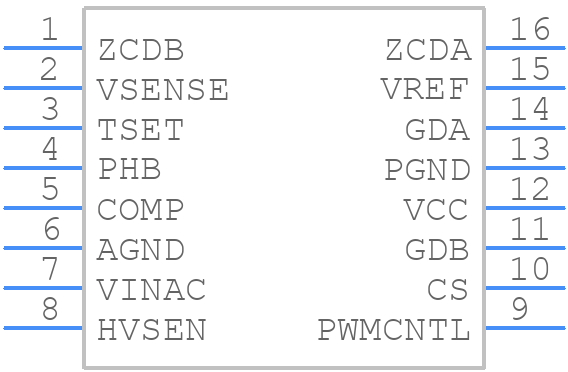

UCC28063AD - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UCC28063AD - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G16)
click to zoom
3D Models
UCC28063AD - Texas Instruments - 3D model - Small Outline Packages - D (R-PDSO-G16)
click to zoom

UCC28063AD Details

  • Manufacturer Part Number:

    UCC28063AD

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    21 V

  • Input Voltage-Min:

    14 V

  • Input Voltage-Nom:

    16 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    21 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    500 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

UCC28063AD Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCC28063AD involves keeping the high-frequency switching nodes (e.g., SW pin) away from sensitive analog nodes, using a solid ground plane, and minimizing loop areas. TI provides a recommended layout in the datasheet and application notes.
  • The choice of external components depends on the specific application requirements. TI provides a component selection guide in the datasheet and application notes. Additionally, the WEBENCH online design tool can be used to simplify the component selection process.
  • The UCC28063AD has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to consider the thermal design and heat dissipation in the system.
  • The UCC28063AD requires a proper bias voltage (VCC) and configuration (e.g., soft-start, undervoltage lockout) for reliable operation. Refer to the datasheet and application notes for specific guidelines and examples.
  • To minimize EMI, use a combination of filtering (e.g., LC filters) and shielding (e.g., metal enclosures) in the system design. Ensure that the PCB layout and component placement minimize radiation and susceptibility to EMI.
