A good PCB layout for the UCC28063D involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing loop areas. TI provides a recommended layout in the datasheet and application notes.
Choose components based on the specific requirements of your design, such as output voltage, current, and frequency. TI provides guidelines and examples in the datasheet and application notes. You can also use online tools, such as TI's Power Stage Designer, to help with component selection.
The UCC28063D has a maximum junction temperature of 150°C. Ensure reliable operation by providing adequate heat sinking, using a thermal pad or heat sink, and keeping the device within the recommended operating temperature range. TI provides thermal resistance and power dissipation data in the datasheet.
The UCC28063D has a built-in overcurrent protection feature. You can set the overcurrent threshold by selecting the appropriate resistor value for the OCSET pin. TI provides guidelines and examples in the datasheet and application notes.
The UCC28063D is a high-voltage, high-current controller, while the UCC28051D is a lower-voltage, lower-current controller. The UCC28063D has additional features, such as adjustable overcurrent protection and a wider input voltage range. Compare the datasheets and application notes to determine the best controller for your specific design requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28063D Overview

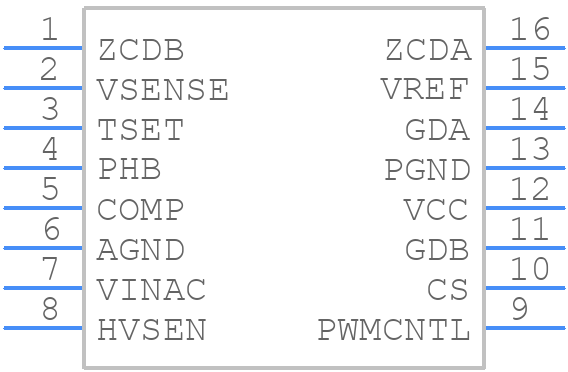

Use the download button to access the UCC28063D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
