A good PCB layout for the UCC28064ADT involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing loop areas. TI provides a recommended layout in the application note SLUA623.
The choice of external components (e.g., inductors, capacitors, and resistors) depends on the specific application requirements. TI provides a component selection guide in the datasheet and application notes. Additionally, the TI Power Stage Designer tool can help with component selection and optimization.
The UCC28064ADT has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and consider derating the device's specifications at high temperatures.
The UCC28064ADT has a built-in overcurrent protection feature. To implement it, connect a sense resistor (Rs) in series with the output inductor, and connect the sense resistor to the CS pin. The device will shut down if the current exceeds the programmed threshold.
Yes, the UCC28064ADT can be used in a synchronous rectification topology. However, it requires additional external components and careful design considerations to ensure proper operation. TI provides application notes and design examples for synchronous rectification topologies.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28064ADT Overview

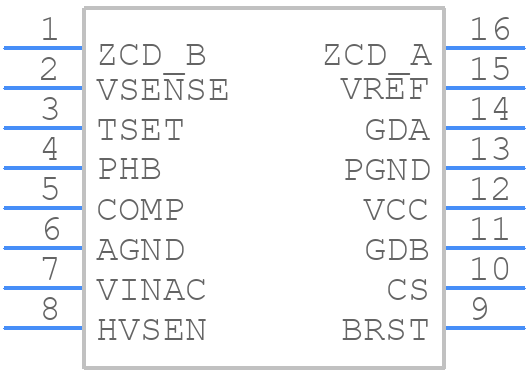

Use the download button to access the UCC28064ADT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
