The UCC28065DT is a high-frequency switching device, so it's crucial to follow good layout practices to minimize noise and EMI. TI recommends placing the device close to the power stage, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, decoupling capacitors should be placed close to the device's power pins.
The choice of external components, such as the bootstrap capacitor, bootstrap resistor, and current sense resistor, depends on the specific application and design requirements. TI provides a detailed component selection guide in the datasheet, as well as a web-based calculator tool to help designers select the optimal components.
The UCC28065DT is rated for operation from -40°C to 125°C, but the maximum operating temperature range may be limited by the specific application and the thermal design of the system. Designers should ensure that the device is operated within the recommended temperature range to ensure reliable operation and to prevent thermal shutdown.
TI provides a comprehensive troubleshooting guide in the datasheet, which covers common issues and their solutions. Designers can also use TI's online resources, such as the Power Stage Designer tool, to simulate and analyze their design and identify potential issues before building the prototype.
Yes, the UCC28065DT is designed to work seamlessly with other TI devices, including the C2000 microcontrollers. TI provides a range of reference designs and evaluation modules that demonstrate the integration of the UCC28065DT with C2000 microcontrollers and other TI devices.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28065DT Overview

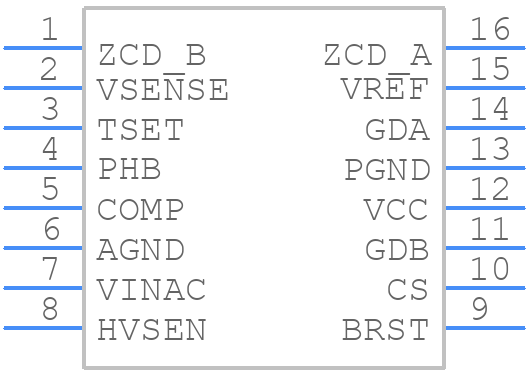

Use the download button to access the UCC28065DT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
