A good PCB layout for the UCC28070DWR involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing loop areas to reduce EMI. TI provides a recommended layout in the datasheet and application notes.
Choose external components based on the specific requirements of your design, such as output voltage, current, and frequency. TI provides guidelines and recommendations for component selection in the datasheet and application notes. You can also use online tools and calculators to help with component selection.
Thermal management is crucial for the UCC28070DWR. Ensure good airflow, use a heat sink if necessary, and follow TI's guidelines for thermal pad connection and PCB layout. Monitor the device's junction temperature (TJ) and adjust the design as needed to prevent overheating.
To troubleshoot issues with your UCC28070DWR-based design, start by checking the basics: power supply, input voltage, and output voltage. Use an oscilloscope to visualize the waveforms and identify any anomalies. Consult TI's application notes and datasheet for troubleshooting guidelines and common pitfalls to avoid.
The enable pin (EN) controls the device's operation. During startup, ensure a clean and controlled enable signal to prevent unwanted switching. During shutdown, ensure a controlled disable sequence to prevent voltage spikes or oscillations. Consult the datasheet and application notes for specific guidelines.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
UCC28070DWR Overview

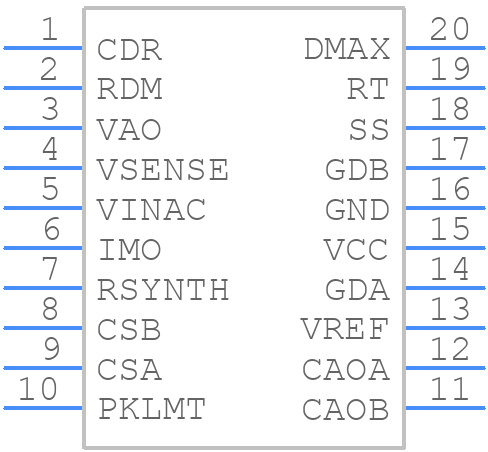

Use the download button to access the UCC28070DWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
