A good PCB layout for the UCC2818AQDRQ1 involves keeping the input and output stages separate, using a star-ground configuration, and placing the input and output capacitors close to the IC. Additionally, using a 4-layer PCB with a dedicated ground plane can help reduce EMI.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, adding a small resistor (e.g., 10 ohms) in series with the output capacitor can help dampen oscillations.
The UCC2818AQDRQ1 is rated for operation from -40°C to 125°C. However, the maximum ambient temperature range may be limited by the specific application and the thermal design of the system.
Yes, the UCC2818AQDRQ1 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is manufactured using a qualified process.
To troubleshoot issues with the UCC2818AQDRQ1, start by checking the input voltage, output voltage, and current. Verify that the component values and PCB layout match the recommended design. Use an oscilloscope to check for oscillations or noise on the output. Also, check for thermal issues by measuring the temperature of the IC and ensuring proper heat sinking.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
UCC2818AQDRQ1 Overview

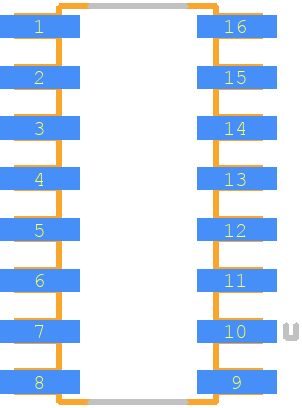

Use the download button to access the UCC2818AQDRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
