The recommended layout and placement for the UCC2818PW involves keeping the high-frequency components (such as the switching FETs and diodes) close to the IC, using a solid ground plane, and minimizing the length of the traces carrying high-frequency signals. It's also important to keep the input and output capacitors close to the IC and to use a Kelvin connection for the output voltage sense.
Optimizing the compensation network for the UCC2818PW involves selecting the right values for the compensation components (R1, R2, C1, and C2) based on the specific application requirements. A good starting point is to use the values recommended in the datasheet, and then adjust them based on the desired loop bandwidth, phase margin, and gain margin. It's also important to consider the effects of component tolerances and temperature variations.
The maximum allowed voltage on the VCC pin of the UCC2818PW is 15V, but it's recommended to keep it below 12V to ensure reliable operation and to prevent damage to the IC. Exceeding the maximum voltage can cause permanent damage to the IC.
To ensure reliable start-up and shutdown of the UCC2818PW, it's important to provide a clean and stable input voltage, and to use a soft-start circuit to limit the inrush current during start-up. It's also recommended to use a voltage supervisor or a power-good signal to ensure that the output voltage is stable before enabling the load.
The maximum allowed output current of the UCC2818PW depends on the specific application and the thermal design of the system. The datasheet specifies a maximum output current of 1.5A, but this can be limited by the thermal performance of the IC and the PCB. It's important to perform thermal analysis and to ensure that the IC is operated within its safe operating area.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC2818PW Overview

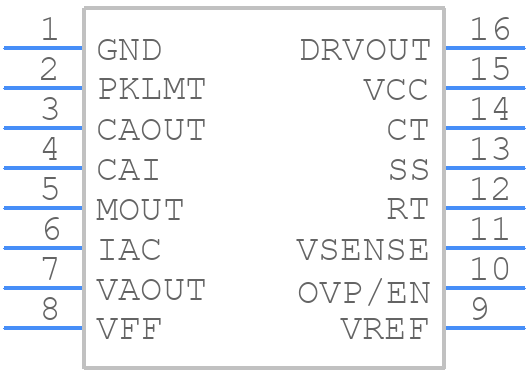

Use the download button to access the UCC2818PW schematic symbol, PCB footprint, and 3D model.
