Part Image

UCC2819AD - Texas Instruments

Description: BiCMOS Power Factor Preregulator

Download UCC2819AD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

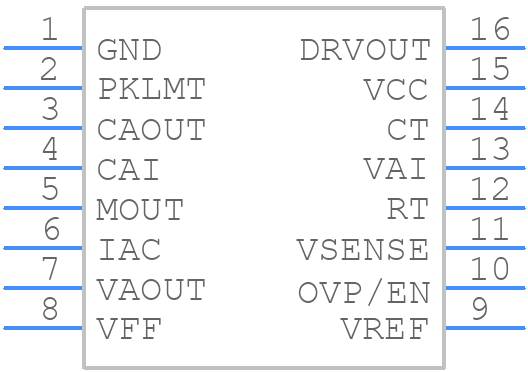

Symbol
UCC2819AD - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UCC2819AD - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - d(r-pdso-g16)
click to zoom
3D Models
UCC2819AD - Texas Instruments - 3D model - Small Outline Packages - d(r-pdso-g16)
click to zoom

UCC2819AD Details

  • Manufacturer Part Number:

    UCC2819AD

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    17 V

  • Input Voltage-Min:

    10.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    6 mA

  • Supply Voltage-Max (Vsup):

    17 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    250 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

UCC2819AD Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the UCC2819AD involves keeping the high-frequency components (such as the transformer and the power MOSFETs) close to the IC, and using a solid ground plane to reduce EMI. The datasheet provides a recommended layout diagram, and TI also provides a layout guide application note (SLUA271) that provides more detailed guidance.
  • Optimizing the compensation network for the UCC2819AD involves selecting the right values for the compensation components (R1, R2, C1, and C2) based on the specific application requirements. TI provides a compensation design tool (UCC2819AD Compensation Tool) that can help with this process. Additionally, the datasheet provides guidelines for selecting the compensation components and adjusting them for optimal performance.
  • The maximum operating temperature range for the UCC2819AD is -40°C to 125°C. However, the device can operate up to 150°C with derating. It's essential to ensure that the device operates within the recommended temperature range to ensure reliable operation and to prevent damage to the device.
  • The UCC2819AD has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, additional protection may be required depending on the specific application requirements. TI recommends using external voltage supervisors or reset ICs to provide additional protection against overvoltage and undervoltage conditions.
  • The recommended input voltage range for the UCC2819AD is 8.5V to 14V. Operating the device outside of this range may affect its performance and reliability. It's essential to ensure that the input voltage is within the recommended range to ensure proper operation of the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UCC2819AD Overview

Use the download button to access the UCC2819AD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28, or try a keyword search, such as Switching Regulator or Controllers
