Texas Instruments provides a recommended PCB layout in the application note SLUA443, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor selection depends on the input voltage, output voltage, and output current requirements. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value of 1-10 μF. X7R or X5R ceramic capacitors are recommended due to their low equivalent series resistance (ESR) and high reliability.
The UCC2819DTR has an operating ambient temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat sinking to maintain a safe operating temperature.
Yes, the UCC2819DTR is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive grade devices and is suitable for use in harsh environments. However, it's essential to follow proper design and manufacturing guidelines to ensure the device's reliability and performance in these applications.
Common issues with the UCC2819DTR can be troubleshooted by checking the PCB layout, component selection, and circuit design. Ensure that the input and output capacitors are properly selected and placed, and that the feedback loop is properly compensated. Also, check for any signs of overheating, and verify that the device is operated within its recommended specifications. Texas Instruments provides a troubleshooting guide in the application note SLUA444.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC2819DTR Overview

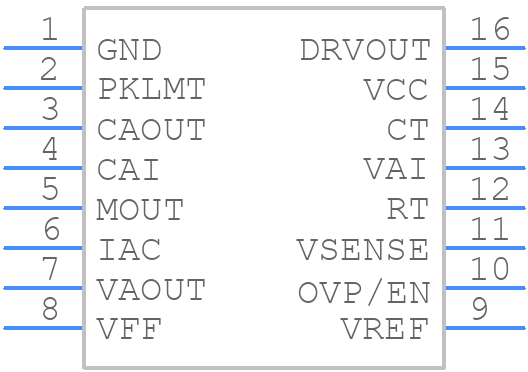

Use the download button to access the UCC2819DTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
