Texas Instruments provides a recommended PCB layout in the application note SLUA433, which includes guidelines for component placement, trace routing, and grounding to minimize EMI and ensure reliable operation.
The selection of the transformer depends on the specific application requirements. Key parameters to consider include the turns ratio, magnetizing inductance, leakage inductance, and core losses. Texas Instruments provides a transformer selection guide in the application note SLUA435, which includes a step-by-step process for selecting the right transformer.
The maximum junction temperature of the UCC28221D is 150°C. To ensure that it does not exceed the recommended temperature, it is essential to provide adequate heat sinking, use a thermally conductive PCB material, and ensure good airflow around the device. The thermal resistance of the package and the PCB should be minimized to reduce the junction temperature.
Common issues with the UCC28221D can be troubleshooted by following a systematic approach. This includes checking the PCB layout, component values, and soldering quality, as well as measuring the input and output voltages, currents, and waveforms. Texas Instruments provides a troubleshooting guide in the application note SLUA434, which includes a step-by-step process for identifying and resolving common issues.
Key considerations for designing a reliable and efficient power supply using the UCC28221D include selecting the right components, designing a stable and efficient transformer, ensuring adequate heat sinking, and providing overcurrent and overvoltage protection. Additionally, it is essential to follow good design practices, such as minimizing noise and EMI, and ensuring that the power supply meets the required safety and regulatory standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28221D Overview

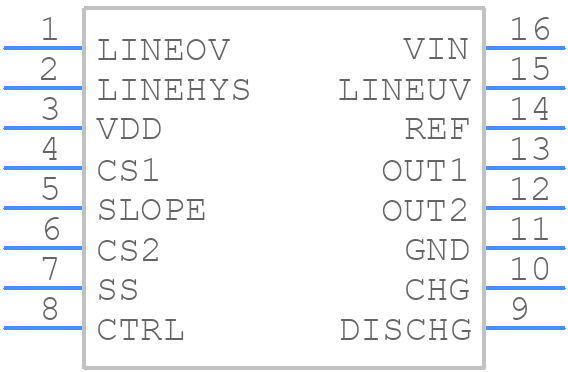

Use the download button to access the UCC28221D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
