Texas Instruments provides a recommended PCB layout in the application note SLUA433, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The UCC28250RGPR datasheet provides a list of recommended external components, including resistors, capacitors, and inductors. Additionally, the application note SLUA433 provides guidance on selecting the right components based on the specific application requirements and operating conditions.
The UCC28250RGPR has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
Texas Instruments provides a troubleshooting guide in the application note SLUA433, which covers common issues and their solutions. Additionally, the UCC28250RGPR datasheet provides guidance on debugging and troubleshooting techniques.
Yes, the UCC28250RGPR is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is suitable for use in high-reliability systems. However, it's essential to follow the recommended design and testing guidelines to ensure compliance with the specific application requirements.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
UCC28250RGPR Overview

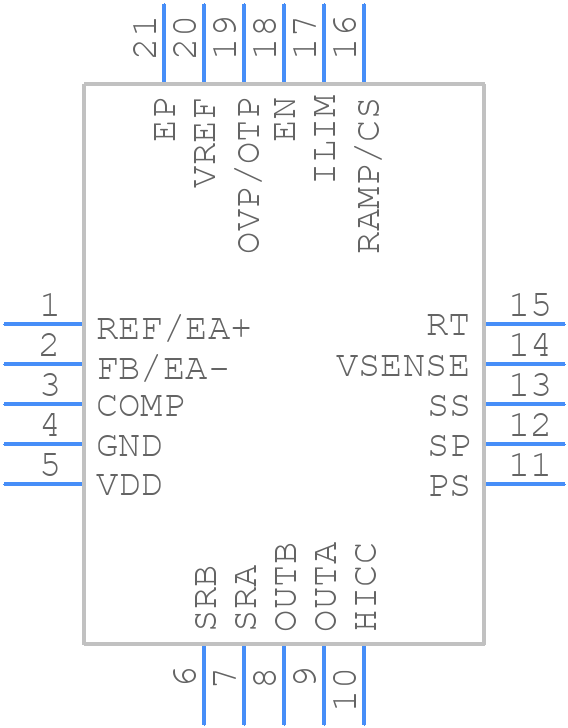

Use the download button to access the UCC28250RGPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
