UCC28250RGPT - Texas Instruments

Description: Texas Instruments UCC28250RGPT, PWM Controller 1.15 MHz, 4.7 → 17 V, 20-Pin QFN

Download UCC28250RGPT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

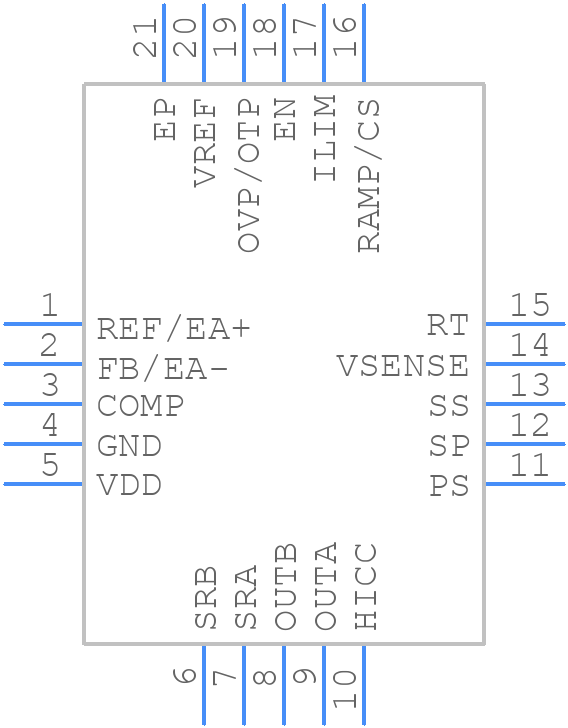

UCC28250RGPT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UCC28250RGPT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGP(S-PVQFN-N20)
click to zoom
3D Models
UCC28250RGPT - Texas Instruments - 3D model - Quad Flat No-Lead - RGP(S-PVQFN-N20)
click to zoom

UCC28250RGPT Details

  • Manufacturer Part Number:

    UCC28250RGPT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT/VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    17 V

  • Input Voltage-Min:

    4.7 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    3.38 V

  • Output Voltage-Min:

    3.22 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    3.4 mA

  • Supply Voltage-Max (Vsup):

    17 V

  • Supply Voltage-Min (Vsup):

    4.7 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

UCC28250RGPT Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCC28250RGPT involves keeping the input and output stages separate, using a star-ground configuration, and placing the input and output capacitors close to the IC. Additionally, using a 4-layer PCB with a solid ground plane can help reduce EMI.
  • Optimizing the compensation network for the UCC28250RGPT involves selecting the right values for the compensation resistors and capacitors. A good starting point is to use the values recommended in the datasheet, and then adjust them based on the specific application requirements and the desired loop gain and phase margin.
  • The maximum output current that the UCC28250RGPT can deliver is 2A. However, this value can be limited by the thermal performance of the PCB and the ambient temperature. It's recommended to derate the output current based on the specific application requirements and the thermal performance of the system.
  • To protect the UCC28250RGPT from overvoltage and undervoltage conditions, it's recommended to use a voltage supervisor or a reset IC to monitor the input voltage and reset the IC if it falls outside the recommended operating range. Additionally, using a TVS diode or a zener diode can help protect the IC from voltage transients and spikes.
  • The recommended input capacitor value for the UCC28250RGPT is 10uF to 22uF, with a voltage rating of 25V or higher. The capacitor should be placed as close to the IC as possible to minimize noise and ripple.
