A good PCB layout for the UCC28251PWR involves keeping the power stage components (e.g., FETs, diodes) close together, using a solid ground plane, and minimizing trace lengths and loops. TI provides a recommended layout in the datasheet and application notes.
Choose components based on the specific application requirements, such as output voltage, current, and frequency. TI provides guidelines and examples in the datasheet and application notes. Additionally, use online component selection tools or consult with a TI FAE for specific recommendations.
Ensure good thermal conduction by using a heat sink or thermal pad, and follow TI's recommended thermal design guidelines. Monitor the device's junction temperature (TJ) and ensure it stays within the specified range (typically -40°C to 150°C).
Use the UCC28251PWR's built-in OCP and SCP features by connecting the OCP pin to a resistor and capacitor network, and configuring the SCP threshold voltage. Consult the datasheet and application notes for specific implementation details.
The UCC28251PWR is a more integrated solution with built-in FET drivers, while the UCC38250 is a controller-only device. The UCC28251PWR also has a more advanced feature set, including synchronous rectification and adjustable switching frequency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28251PWR Overview

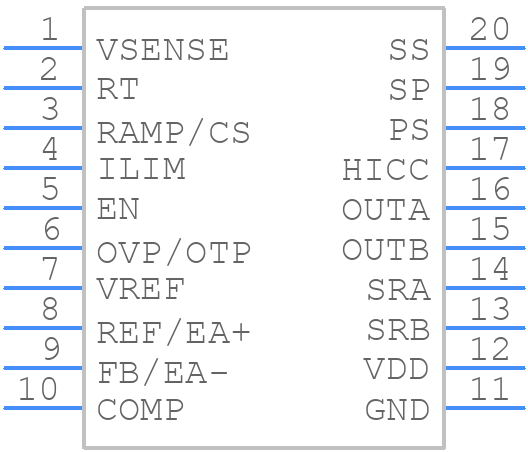

Use the download button to access the UCC28251PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
