A good PCB layout for the UCC28251RGPT involves keeping the input and output stages separate, using a star-ground configuration, and placing the input filter components close to the IC. Additionally, using a solid ground plane and minimizing trace lengths can help reduce EMI.
Optimizing the compensation network for the UCC28251RGPT involves selecting the right values for the compensation components (R1, R2, C1, and C2) based on the specific application requirements. A good starting point is to use the values recommended in the datasheet, and then adjust them based on the desired transient response and stability margins.
The maximum allowed input voltage for the UCC28251RGPT is 30V, but it's recommended to keep the input voltage below 25V to ensure reliable operation and to prevent damage to the IC.
The UCC28251RGPT is rated for operation up to 125°C, but it's recommended to derate the output power and input voltage as the temperature increases to ensure reliable operation. Additionally, the IC's thermal pad should be connected to a heat sink or a thermal plane to dissipate heat efficiently.
To troubleshoot oscillations or instability issues with the UCC28251RGPT, check the PCB layout, compensation network, and input/output filtering. Ensure that the input voltage is within the recommended range, and the output load is within the specified range. Also, check for any signs of overheating or electrical overstress.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28251RGPT Overview

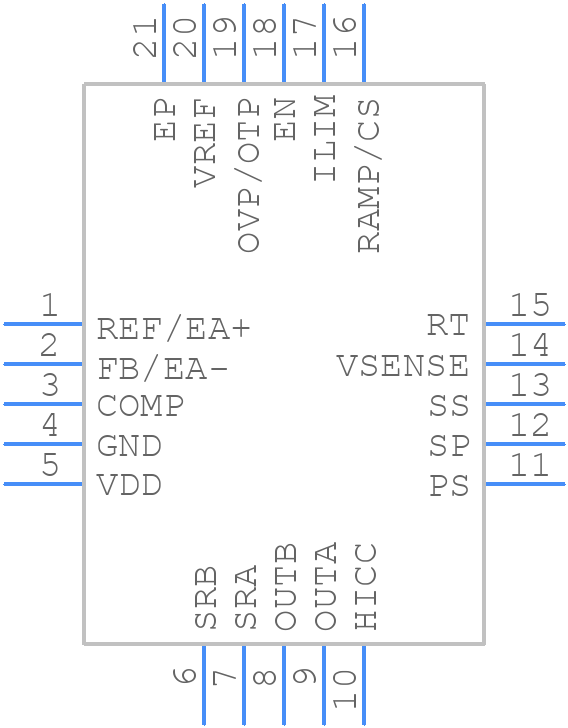

Use the download button to access the UCC28251RGPT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
