UCC28633D - Texas Instruments

Description: High Power Flyback Controller with Primary-Side Regulation and Peak Power Mode

Download UCC28633D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

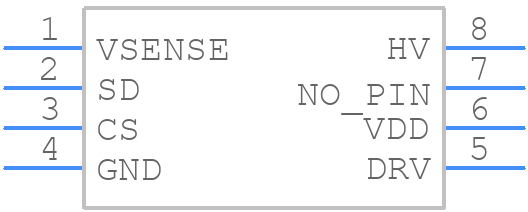

Symbol
UCC28633D - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UCC28633D - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0007A
click to zoom
3D Models
UCC28633D - Texas Instruments - 3D model - Small Outline Packages - D0007A
click to zoom

UCC28633D Details

  • Manufacturer Part Number:

    UCC28633D

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES IN FM CONTROL TECHNIQUE

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G7

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    13 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    120 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

UCC28633D Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the UCC28633D evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The UCC28633D datasheet provides guidelines for transformer selection, including recommended turns ratios, inductance values, and core materials. Additionally, Texas Instruments offers a transformer selection tool on their website to help designers choose the right transformer for their specific application.
  • While the datasheet specifies an operating temperature range of -40°C to 125°C, the device can operate up to 150°C with derating. However, it's essential to consider the thermal management of the system and ensure that the device does not exceed the maximum junction temperature (Tj) of 150°C.
  • The UCC28633D has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider network. The OVP threshold can be set by selecting the appropriate resistor values. Texas Instruments provides an application note (SLUAAC3) that provides more details on implementing OVP with the UCC28633D.
  • The UCC28633D datasheet recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF for the input capacitor. The capacitor type and value may need to be adjusted based on the specific application requirements and input voltage ripple.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UCC28633D Overview

Use the download button to access the UCC28633D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
