Texas Instruments provides a recommended PCB layout in the application note SLUA689, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The transformer selection depends on the specific application requirements, such as output voltage, current, and power level. Texas Instruments provides a transformer selection guide in the application note SLUA690, which includes guidelines for calculating the transformer turns ratio, inductance, and core size.
The UCC28780RTET has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management and heat sinking to prevent overheating and ensure reliable operation.
The UCC28780RTET has built-in OVP and UVP features, but they require external resistors and capacitors to set the threshold voltages. The application note SLUA691 provides a detailed guide on how to implement OVP and UVP using the UCC28780RTET.
The recommended input capacitor type is a low-ESR ceramic capacitor, such as X5R or X7R, with a value of 10uF to 22uF. The input capacitor should be placed close to the VIN pin and have a low impedance path to the power source to minimize voltage ripple and ensure stable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28780RTET Overview

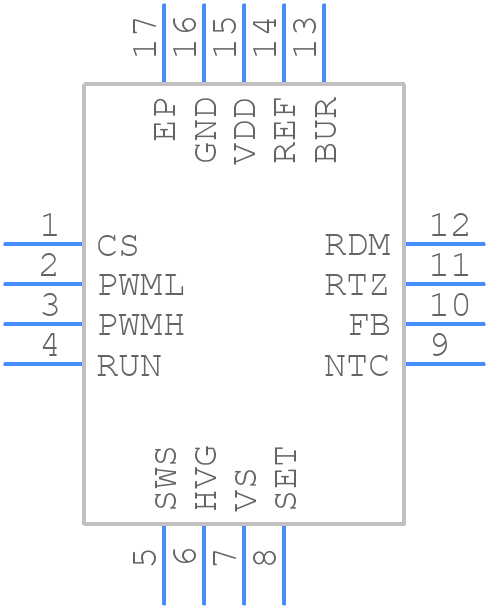

Use the download button to access the UCC28780RTET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
