A good PCB layout for the UCC28810D involves keeping the input and output stages separate, using a star-ground configuration, and placing the input filter components close to the IC. Additionally, using a solid ground plane and minimizing trace lengths can help reduce EMI.
When selecting a transformer for the UCC28810D, consider the output power, voltage, and current requirements. Choose a transformer with a suitable turns ratio, core material, and wire size to ensure efficient energy transfer and minimal losses.
The UCC28810D is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and cooling conditions. Ensure proper thermal management to maintain a safe operating temperature.
The UCC28810D has a built-in overcurrent protection feature. To implement it, connect a sense resistor in series with the output, and use the OC pin to monitor the current. Set the OC threshold voltage according to the desired current limit, and use an external circuit to latch off the converter in case of an overcurrent event.
While the UCC28810D is primarily designed for isolated topologies, it can be used in non-isolated configurations with some modifications. However, this may require additional components and careful design considerations to ensure safe and efficient operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28810D Overview

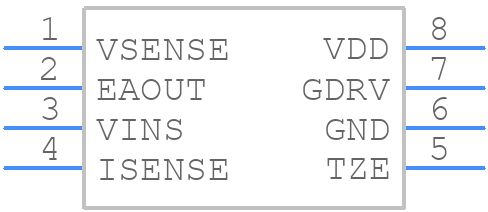

Use the download button to access the UCC28810D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
