A good PCB layout for the UCC28880DR involves keeping the input and output stages separate, using a star-ground configuration, and placing the input and output capacitors close to the IC. Additionally, using a solid ground plane and minimizing trace lengths can help reduce EMI.
To ensure the UCC28880DR operates within its SOA, monitor the input voltage, output current, and junction temperature. Ensure the input voltage is within the recommended range, the output current is within the maximum rating, and the junction temperature is below the maximum rating of 150°C.
The recommended input capacitor value for the UCC28880DR is 10uF to 22uF, with a voltage rating of at least 1.5 times the maximum input voltage. A low-ESR ceramic or film capacitor is recommended, such as the X5R or X7R dielectric type.
To optimize the output inductor selection, consider the inductor's saturation current, DC resistance, and core material. Choose an inductor with a saturation current rating above the maximum output current, a low DC resistance to minimize losses, and a core material with low core losses, such as ferrite or powdered iron.
To ensure proper thermal management, use a heat sink with a thermal resistance of less than 10°C/W, and apply a thermal interface material (TIM) with a thermal conductivity of at least 5 W/m-K. Ensure good airflow around the heat sink and avoid blocking airflow with nearby components.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28880DR Overview

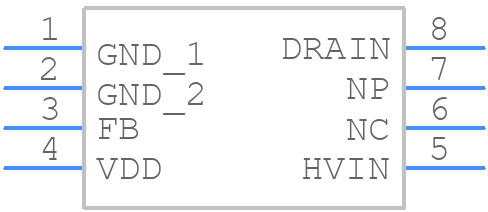

Use the download button to access the UCC28880DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
