UCC28910D - Texas Instruments

Description: 700V Flyback Switcher with Constant-Voltage Constant-Current and Primary-side Control

Download UCC28910D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

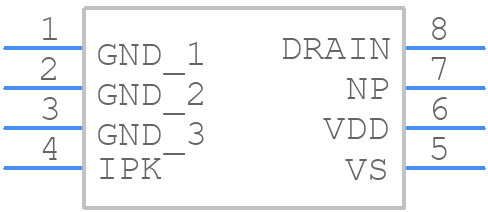

Symbol
UCC28910D - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UCC28910D - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - UCC28910D
click to zoom
3D Models
UCC28910D - Texas Instruments - 3D model - Small Outline Packages - UCC28910D
click to zoom

UCC28910D Details

  • Manufacturer Part Number:

    UCC28910D

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT/VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    450 V

  • Input Voltage-Min:

    20 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G7

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.6 A

  • Output Voltage-Max:

    24 V

  • Output Voltage-Min:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    3.4 mA

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    115 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Power Output-Max:

    7.5 W

  • Width:

    3.9 mm

UCC28910D Frequently Asked Questions (FAQs)

  • TI recommends a 4-layer PCB with a solid ground plane, and placing the UCC28910D close to the input capacitors and output inductors to minimize loop areas and reduce EMI. Additionally, a shielded inductor and a common-mode choke can be used to further reduce EMI.
  • The compensation network can be optimized by using the TI-provided compensation calculator tool, which takes into account the specific application requirements and component values. Additionally, the datasheet provides a general guideline for compensation network design.
  • The maximum allowed voltage on the VCC pin is 15V. To protect it from overvoltage, a voltage regulator or a zener diode can be used to clamp the voltage to a safe level. Additionally, a TVS diode can be used to absorb voltage spikes and transients.
  • The SOA can be ensured by monitoring the input voltage, output current, and junction temperature. The datasheet provides a SOA graph that can be used to determine the safe operating region. Additionally, thermal monitoring and overcurrent protection can be implemented to prevent damage to the device.
  • A low-ESR ceramic or film capacitor with a value of 10-22uF is recommended for the input capacitor. The capacitor should be placed close to the UCC28910D and have a low inductance to minimize voltage ripple and noise.
