A good PCB layout for the UCC2893PWR involves keeping the high-frequency components (such as the transformer and the power switches) close together, using a solid ground plane, and minimizing the length of the high-current paths. Additionally, it's recommended to use a shielded transformer and to keep the sensitive analog circuits away from the high-power components.
When choosing a transformer for the UCC2893PWR, consider the output power, output voltage, and input voltage. The transformer's turns ratio should be chosen to achieve the desired output voltage, and the core material should be suitable for the operating frequency. Additionally, ensure the transformer is designed for the maximum output current and has adequate insulation and creepage distance.
The maximum ambient temperature for the UCC2893PWR is 85°C. However, the device's junction temperature should not exceed 150°C. It's essential to ensure proper thermal design and heat sinking to maintain a safe operating temperature.
The UCC2893PWR has a built-in overcurrent protection feature. To implement it, connect a sense resistor in series with the output, and connect the sense resistor's output to the CS pin. The device will shut down if the current exceeds the threshold set by the sense resistor and the internal comparator.
Yes, the UCC2893PWR can be used in a synchronous rectification topology. However, it requires additional external components, such as a synchronous rectifier controller and power MOSFETs. The UCC2893PWR's output stage should be configured for asynchronous operation, and the synchronous rectifier controller should be used to control the power MOSFETs.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC2893PWR Overview

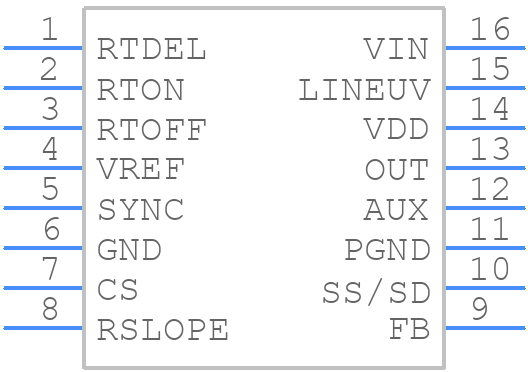

Use the download button to access the UCC2893PWR schematic symbol, PCB footprint, and 3D model.
