TI recommends a compact layout with the UCC2895N placed close to the transformer, and the use of a solid ground plane to reduce EMI. Additionally, TI suggests using a shielded transformer and placing the feedback components close to the IC.
The compensation network can be optimized by using the TI-provided spreadsheet or by following the guidelines in the datasheet. The goal is to achieve a phase margin of at least 45° and a gain margin of at least 10 dB. The compensation network should be adjusted to achieve a stable and well-damped response.
The maximum allowed voltage on the VCC pin is 18V. To protect it from overvoltage, TI recommends using a voltage regulator or a zener diode to clamp the voltage. Additionally, a TVS diode can be used to protect against voltage spikes.
To ensure the UCC2895N is operating within its SOA, the user should monitor the IC's junction temperature, input voltage, and output current. The user should also ensure that the IC is not exposed to excessive voltage or current stress, and that the thermal design is adequate to keep the junction temperature within the specified range.
The key considerations for thermal design with the UCC2895N include providing adequate heat sinking, using a thermal interface material, and ensuring good airflow around the IC. The user should also consider the thermal resistance of the IC package and the PCB, and ensure that the junction temperature is kept within the specified range.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
UCC2895N Overview

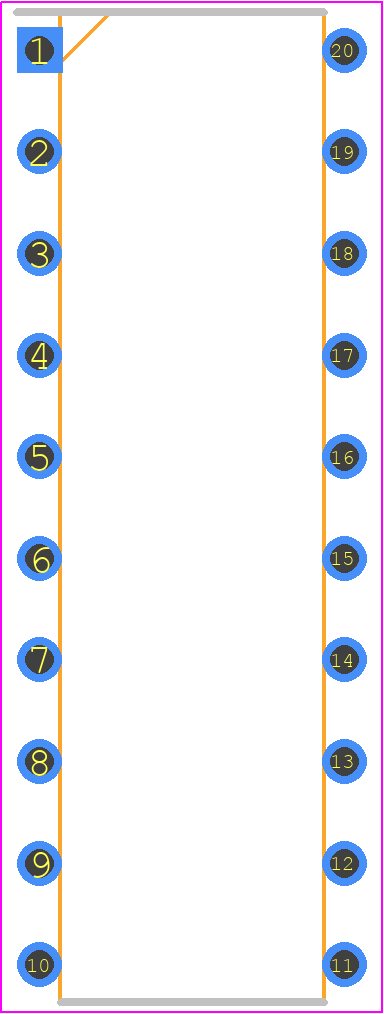

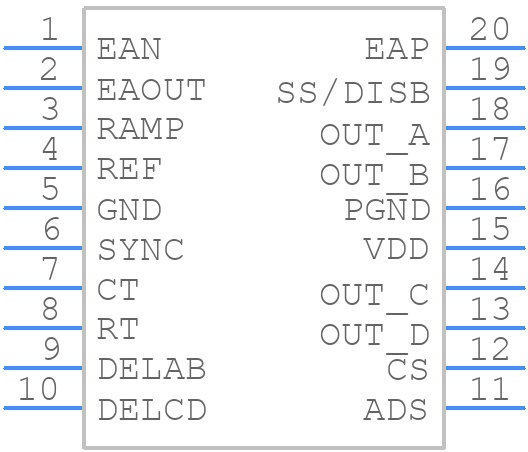

Use the download button to access the UCC2895N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
