The UCC2895Q is a high-frequency switching converter, and proper layout and placement are crucial for its operation. TI recommends a compact layout with short traces, and placing the IC close to the input capacitors and the output inductor. A 4-layer PCB with a solid ground plane is also recommended.
The selection of external components such as the input capacitor, output inductor, and output capacitor depends on the specific application requirements. TI provides a component selection guide in the datasheet, and also offers online tools such as the WEBENCH Power Designer to help with component selection.
The UCC2895Q has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. The device should be derated for temperatures above 85°C to ensure reliable operation.
TI provides a troubleshooting guide in the datasheet, which covers common issues such as startup problems, oscillations, and overvoltage protection. Additionally, TI offers online resources such as the Power Management Forum and the E2E Community, where engineers can ask questions and get help from TI experts and other users.
Yes, the UCC2895Q is compatible with lead-free soldering. TI uses a lead-free finish on the device, and it is designed to meet the requirements of the RoHS (Restriction of Hazardous Substances) directive.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC2895Q Overview

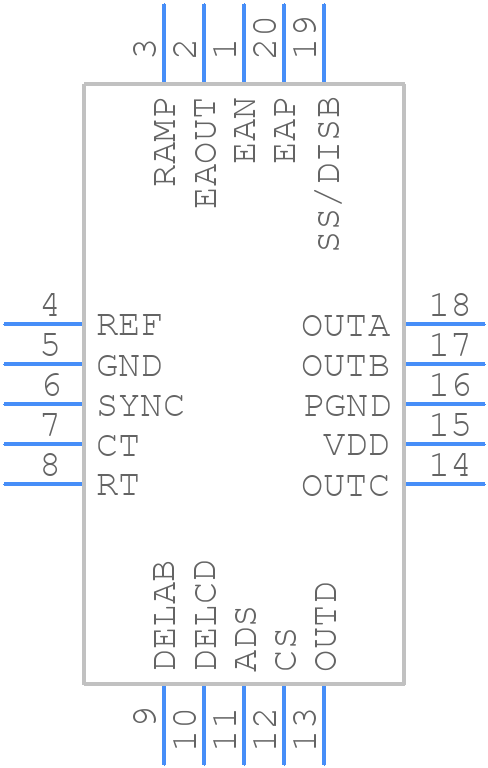

Use the download button to access the UCC2895Q schematic symbol and PCB footprint.
