Texas Instruments recommends a compact layout with the UCC2897PW placed close to the transformer, and the use of a ground plane to reduce EMI. Additionally, it's recommended to keep the high-frequency nodes (e.g. pins 1, 2, and 3) away from the low-frequency nodes (e.g. pins 5, 6, and 7).
To ensure the UCC2897PW operates within its SOA, monitor the drain-source voltage (Vds) and drain current (Id) during startup and fault conditions. Use the device's built-in overcurrent protection (OCP) and overvoltage protection (OVP) features, and consider adding external protection circuits if necessary.
The recommended gate drive voltage for the UCC2897PW is between 10V and 15V. A higher gate drive voltage can improve the device's switching speed and reduce losses, but may also increase the risk of shoot-through and EMI. A lower gate drive voltage can reduce EMI and improve reliability, but may also increase switching losses.
To troubleshoot issues with the UCC2897PW, use an oscilloscope to monitor the device's key nodes (e.g. Vds, Id, and Vgs). Check for proper power supply decoupling, ensure the device is properly configured, and verify that the input and output voltages are within the recommended operating range. Consult the datasheet and application notes for guidance on specific troubleshooting techniques.
Yes, the UCC2897PW can be used in a resonant converter topology. The benefits of doing so include reduced switching losses and EMI, and improved efficiency. However, resonant converters can be more complex to design and require careful tuning of the resonant tank circuit to ensure stable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC2897PW Overview

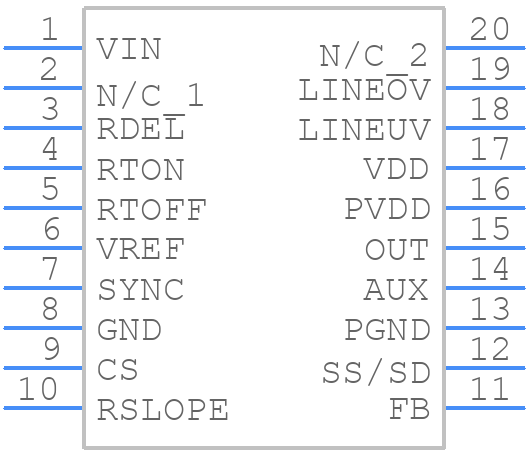

Use the download button to access the UCC2897PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
