A good PCB layout for the UCC29002DGKR involves keeping the input and output stages separate, using a star-ground configuration, and placing the input and output capacitors close to the device. Additionally, using a solid ground plane and minimizing trace lengths can help reduce EMI.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output stages properly.
The UCC29002DGKR is rated for operation from -40°C to 125°C. However, the device's performance may degrade at higher temperatures, so it's essential to ensure proper thermal management and heat sinking.
While the UCC29002DGKR is a high-quality device, it may not meet the specific requirements for high-reliability or aerospace applications. Engineers should consult with Texas Instruments or a qualified reliability expert to determine the device's suitability for such applications.
To troubleshoot issues with the UCC29002DGKR, start by checking the input and output voltage levels, as well as the device's temperature. Verify that the component values and PCB layout meet the recommended guidelines. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes or contact Texas Instruments' support team.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC29002DGKR Overview

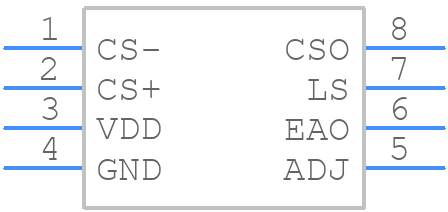

Use the download button to access the UCC29002DGKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC29,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
