Texas Instruments provides a recommended PCB layout in the application note SLUA365, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of the transformer depends on the specific application requirements, such as input voltage, output voltage, and power rating. Texas Instruments provides a transformer selection guide in the application note SLUA366, which includes a list of recommended transformers and guidelines for custom transformer design.
The UCC2921DTR has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management and heat sinking to prevent overheating and ensure reliable operation.
Yes, the UCC2921DTR is qualified for automotive and high-reliability applications, meeting the requirements of AEC-Q100 and IATF 16949. However, it's essential to follow the recommended design and manufacturing guidelines to ensure the device meets the specific application requirements.
Texas Instruments provides a troubleshooting guide in the application note SLUA367, which includes a step-by-step approach to identify and resolve common issues, such as oscillations, instability, or output voltage errors. The guide also provides tips for debugging and optimizing the design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC2921DTR Overview

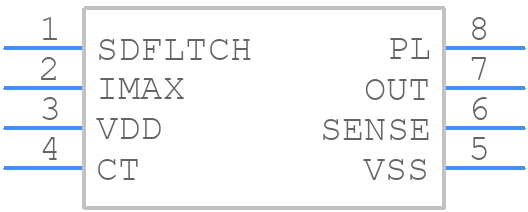

Use the download button to access the UCC2921DTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC29,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
