Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors close to the device.
The UCC33020QRAQRQ1 has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB. Ensure good thermal conductivity by using a thermal interface material and a heat sink if necessary. Also, follow the recommended operating temperature range and power dissipation guidelines.
The recommended input capacitor value is typically in the range of 10uF to 22uF, and a low-ESR ceramic capacitor (such as X5R or X7R) is recommended. The capacitor should be placed close to the VIN pin and have a low inductance path to the ground plane.
Start by verifying the PCB layout and component values match the recommended design. Check for proper decoupling, input capacitor selection, and thermal management. Use an oscilloscope to measure the output voltage and current, and look for signs of oscillation or instability. Consult the datasheet and application notes for troubleshooting guidelines and simulation models.
Yes, the UCC33020QRAQRQ1 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive reliability and is manufactured using a robust process. However, ensure that the device is used within its recommended operating conditions and follow the guidelines for high-reliability design.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC33020QRAQRQ1 Overview

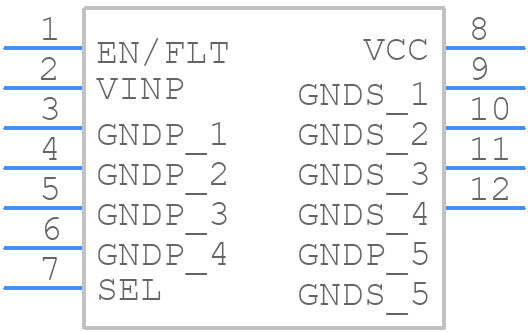

Use the download button to access the UCC33020QRAQRQ1 schematic symbol, PCB footprint, and 3D model.
