UCC3626DWTR - Texas Instruments

Description: Motor / Motion / Ignition Controllers & Drivers Brushless DC Motor Controller

Download UCC3626DWTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

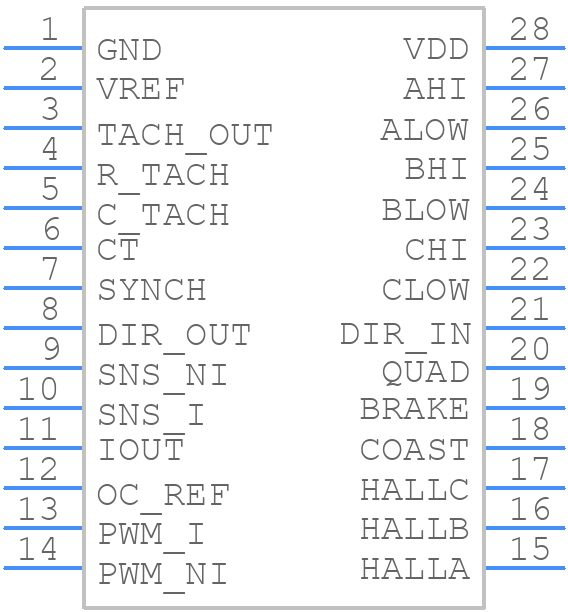

UCC3626DWTR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UCC3626DWTR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G28)
click to zoom
3D Models
UCC3626DWTR - Texas Instruments - 3D model - Small Outline Packages - DW (R-PDSO-G28)
click to zoom

UCC3626DWTR Details

  • Manufacturer Part Number:

    UCC3626DWTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • Analog IC - Other Type:

    1-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    0.2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    14.5 V

  • Supply Voltage-Min (Vsup):

    11 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

UCC3626DWTR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLUA271, which includes guidelines for component placement, trace routing, and grounding to minimize EMI and ensure reliable operation.
  • The UCC3626DWTR datasheet provides guidelines for transformer selection, including recommended turns ratios, inductance values, and core materials. Additionally, Texas Instruments offers a transformer selection tool on their website to help engineers choose the right transformer for their application.
  • The UCC3626DWTR is rated for operation from -40°C to 125°C, but the maximum ambient temperature range may be limited by the specific application and the thermal design of the system. Engineers should consult the datasheet and perform thermal analysis to ensure the device operates within its recommended temperature range.
  • The UCC3626DWTR does not have built-in OVP, but it can be implemented using external components such as a voltage supervisor IC or a zener diode. Texas Instruments provides application notes and design examples for implementing OVP with the UCC3626DWTR.
  • The recommended input capacitor value and type depend on the specific application and the input voltage range. A general guideline is to use a low-ESR ceramic capacitor with a value of 10uF to 22uF. Engineers should consult the datasheet and perform simulation and testing to determine the optimal input capacitor value and type for their application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UCC3626DWTR Overview

Use the download button to access the UCC3626DWTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC36, or try a keyword search, such as Motion Control Electronics
