Texas Instruments provides a recommended PCB layout in their application note SLUP136, which includes guidelines for component placement, trace routing, and grounding to minimize EMI.
The UCC3626PW has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. Ensure the thermal plane is connected to a heat sink or a large copper area on the PCB, and follow the thermal management guidelines in the datasheet.
The bootstrap capacitor should be rated for at least 2x the maximum input voltage, but not exceeding 50V. For example, if the input voltage is 12V, the bootstrap capacitor should be rated for at least 24V.
Start by checking the input voltage, output voltage, and current sense resistor values. Verify that the component values and PCB layout match the recommended design. Use an oscilloscope to check the switching waveforms and ensure the device is not overheating. Consult the datasheet and application notes for troubleshooting guidelines.
Yes, the UCC3626PW is qualified for automotive and high-reliability applications. However, ensure that the device is used within its recommended operating conditions, and follow the guidelines for component selection, PCB design, and manufacturing to ensure reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC3626PW Overview

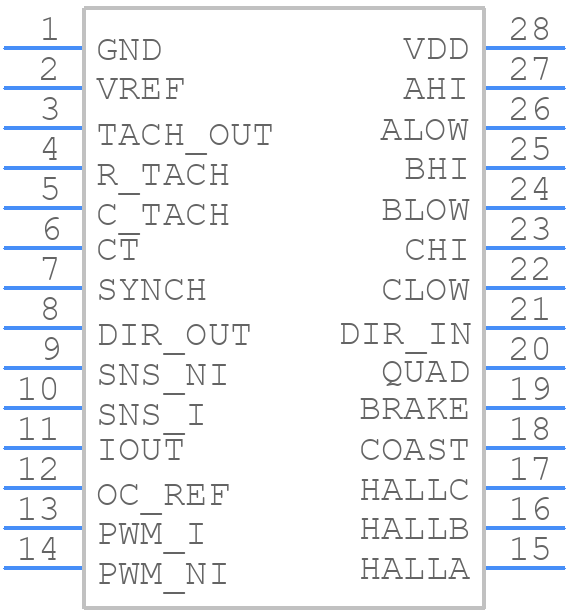

Use the download button to access the UCC3626PW schematic symbol, PCB footprint, and 3D model.
