SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.07 mm
Supply Current-Max:
1 mA
Supply Voltage-Max:
15 V
Supply Voltage-Min:
4 V
Supply Voltage-Nom:
14 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Turn-off Time:
0.07 µs
Turn-on Time:
0.07 µs
Width:
3 mm
UCC37322DGNR Frequently Asked Questions (FAQs)
A good PCB layout for the UCC37322DGNR involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog and digital ground plane to minimize noise coupling.
To ensure proper powering and decoupling of the UCC37322DGNR, use a high-quality power supply with low ripple and noise, and add decoupling capacitors (e.g., 10uF and 100nF) close to the device's power pins. Also, ensure that the power supply voltage is within the recommended range of 4.5V to 18V.
The maximum allowable power dissipation for the UCC37322DGNR is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the actual operating temperature and thermal resistance.
To troubleshoot issues with the UCC37322DGNR, start by verifying the PCB layout and component values, ensuring that they match the recommended values in the datasheet. Check for proper power supply decoupling, and ensure that the input and output capacitors are of sufficient value and quality. Use an oscilloscope to measure the output voltage and current, and check for any signs of oscillation or instability.
The UCC37322DGNR is a commercial-grade device, and its use in high-reliability or safety-critical applications may require additional qualification and testing. It's recommended to consult with Texas Instruments or a qualified reliability engineer to determine the suitability of the device for such applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC37322DGNR Overview

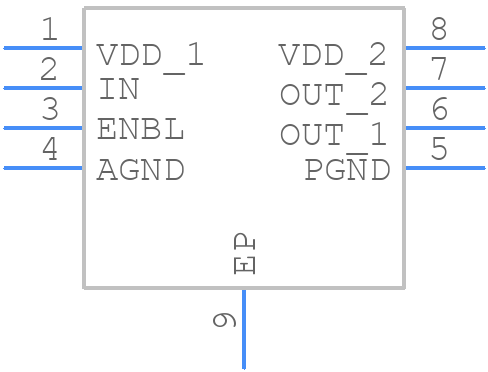

Use the download button to access the UCC37322DGNR schematic symbol, PCB footprint, and 3D model.
