Texas Instruments recommends a compact layout with the UCC3750N placed close to the power MOSFETs, and using a solid ground plane to reduce noise and EMI. Additionally, it's recommended to use a Kelvin connection for the sense resistor and to keep the high-current paths short and wide.
The sense resistor value depends on the desired current limit and the voltage drop across the sense resistor. A good starting point is to choose a sense resistor value that results in a voltage drop of around 50-100 mV at the maximum expected current. The UCC3750N datasheet provides a formula to calculate the sense resistor value based on the desired current limit and voltage drop.
The bootstrap capacitor is used to provide a high-voltage supply to the gate driver stage of the UCC3750N. The recommended value is typically in the range of 10-100 nF, and depends on the switching frequency, output capacitance, and the desired voltage ripple on the bootstrap supply. A larger capacitor value can reduce the voltage ripple but may increase the start-up time.
The UCC3750N requires a bias voltage of 12-15 V, and a minimum input voltage of 8.5 V to ensure proper operation. The bias voltage should be decoupled with a capacitor to reduce noise and ripple. Additionally, the input voltage should be filtered to prevent noise and transients from affecting the device's operation.
The UCC3750N has a maximum junction temperature of 150°C, and requires a good thermal design to ensure reliable operation. Key considerations include using a heat sink with a low thermal resistance, ensuring good airflow, and keeping the device away from other heat sources. The datasheet provides a thermal resistance model to help estimate the junction temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC3750N Overview

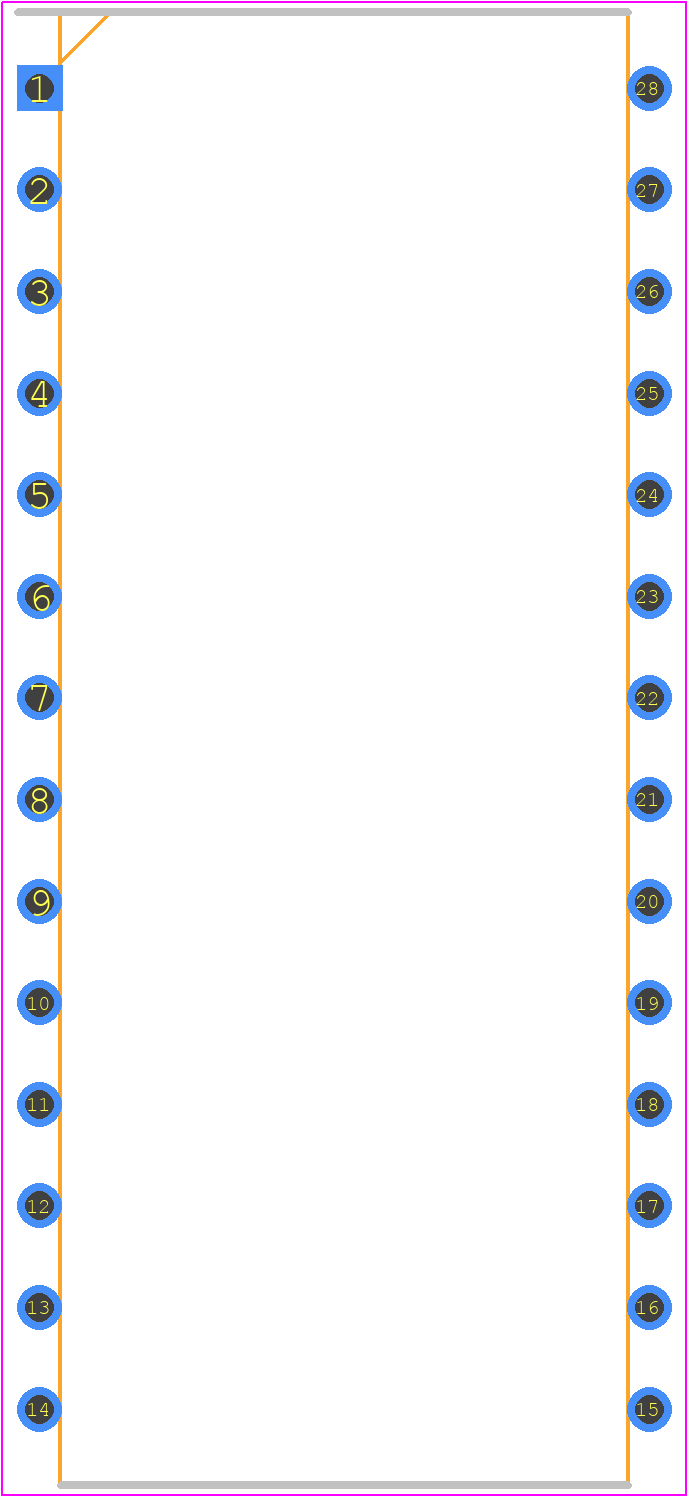

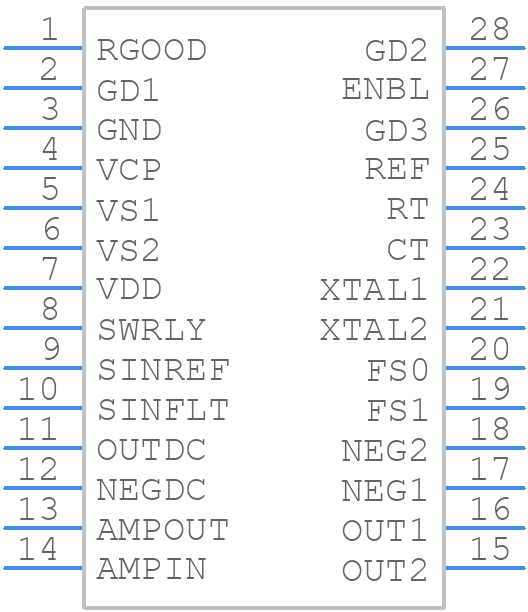

Use the download button to access the UCC3750N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC37,
or try a keyword search, such as Other Telecom ICs
