- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for UCC38050P
- Part Number UCC38050P
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - P (R-PDIP-T8)
- Released Date Jan 12, 2017
- Last Modified Date Jun 1, 2025 4:11 AM UTC
- Pinout / Pin List Click Here (Member Only)
UCC38050P Details
-
Manufacturer Part Number:
UCC38050P
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
DIP
-
Pin Count:
8
-
Country Of Origin:
Mexico
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
UCC38050P Frequently Asked Questions (FAQs)
-
The recommended layout and placement for the UCC38050P involves keeping the high-frequency components (such as the switching FETs and diodes) close to the IC, using a solid ground plane, and minimizing the length of the traces carrying high-frequency signals. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. TI provides a reference design and layout guidelines in the datasheet and application notes.
-
Optimizing the compensation network for the UCC38050P involves selecting the right values for the compensation components (R1, R2, C1, and C2) based on the specific application requirements. TI provides a compensation calculator tool and guidelines in the application notes to help with this process. The goal is to achieve a stable and well-damped response, with a phase margin of at least 45° and a gain margin of at least 10 dB.
-
The maximum allowed voltage on the VCC pin of the UCC38050P is 15 V, with a recommended operating range of 12 V to 14 V. Exceeding this voltage can damage the IC. It's essential to ensure that the voltage regulator or power supply used to power the UCC38050P is designed to provide a stable and regulated voltage within this range.
-
Protecting the UCC38050P from overcurrent and overvoltage conditions involves using external components such as current sense resistors, fuses, and voltage supervisors. TI recommends using a current sense resistor (RCS) to monitor the output current and a fuse to protect against overcurrent conditions. A voltage supervisor can be used to detect overvoltage conditions and shut down the converter if necessary.
-
The recommended operating temperature range for the UCC38050P is -40°C to 125°C, with a junction temperature (TJ) not exceeding 150°C. Operating the IC outside this range can affect its performance, reliability, and lifespan. It's essential to ensure that the system design provides adequate cooling and thermal management to keep the IC within this temperature range.
Trust Checks
System Verified
UCC38050P Overview

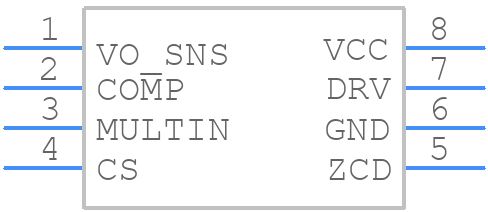

Use the download button to access the UCC38050P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC38,
or try a keyword search, such as Switching Regulator or Controllers
