Texas Instruments recommends a compact layout with the UCC3810N placed close to the DC-DC converter, using a solid ground plane and short traces to minimize inductance and radiation. Additionally, it's recommended to place a 10nF capacitor between the VCC and GND pins to filter out high-frequency noise.
The UCC3810N requires a bias voltage of 12V to 15V on the VCC pin, and the EN pin should be tied to a logic high (e.g., 5V) to enable the device. Additionally, the RT pin should be connected to a resistor divider network to set the switching frequency, and the CT pin should be connected to a capacitor to set the oscillator timing.
The UCC3810N is capable of delivering up to 1A of output current, but this is dependent on the specific application and the design of the DC-DC converter. It's recommended to consult the datasheet and application notes for specific guidance on output current capability.
To troubleshoot issues with the UCC3810N, start by verifying the power supply voltage and ensuring that the device is properly biased. Check the oscillator frequency and amplitude using an oscilloscope, and verify that the output voltage is within the expected range. If issues persist, consult the datasheet and application notes for guidance on troubleshooting and debugging.
The UCC3810N is rated for operation up to 125°C, but it's recommended to derate the device's performance and output current capability at higher temperatures. Consult the datasheet and application notes for specific guidance on high-temperature operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC3810N Overview

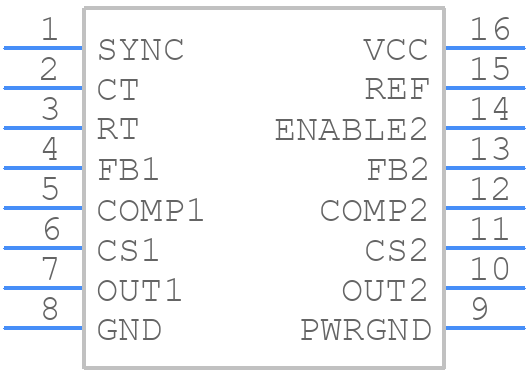

Use the download button to access the UCC3810N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC38,
or try a keyword search, such as Switching Regulator or Controllers
