Texas Instruments provides a recommended PCB layout in the application note SLUA281, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The UCC3895DWTRG4 datasheet provides guidelines for transformer selection, including recommended turns ratios, inductance values, and core materials. Additionally, Texas Instruments offers a transformer selection tool on their website to help engineers choose the right transformer for their specific application.
The UCC3895DWTRG4 has a maximum junction temperature of 150°C. To ensure reliable operation, engineers should provide adequate heat sinking, such as a thermal pad or heat sink, and ensure good airflow around the device. The datasheet provides thermal resistance values and recommended thermal management techniques.
Texas Instruments provides a troubleshooting guide in the application note SLUA282, which covers common issues and their solutions, including oscillation, instability, and output voltage regulation. Engineers can also use simulation tools, such as TI's Power Stage Designer, to model and analyze their design.
The UCC3895DWTRG4 is designed to meet CISPR 22 Class B EMI standards. Engineers should follow good design practices, such as using a shielded transformer, minimizing loop areas, and using EMI filters, to ensure compliance with EMI regulations. The datasheet provides additional guidance on EMI mitigation techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC3895DWTRG4 Overview

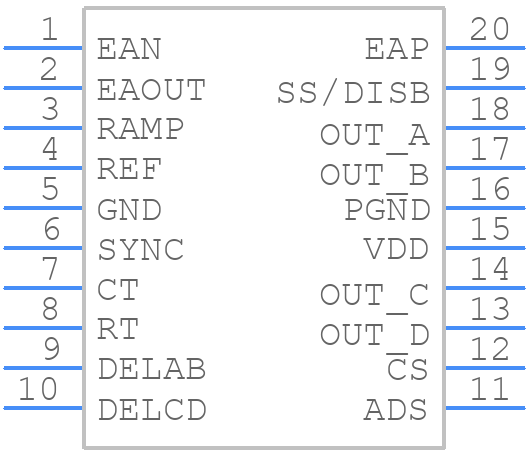

Use the download button to access the UCC3895DWTRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC38,
or try a keyword search, such as Switching Regulator or Controllers
