A good PCB layout for the UCC39002DGK involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input voltage and to keep the output voltage traces away from the input voltage traces.
The choice of input and output capacitors for the UCC39002DGK depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be able to handle the input voltage and current, while the output capacitor should be able to handle the output voltage and current. A good starting point is to use capacitors with a capacitance value of 10uF to 22uF and a voltage rating of 1.5 to 2 times the input voltage.
The UCC39002DGK is rated for operation over a temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance and reliability.
Proper thermal management of the UCC39002DGK involves ensuring good airflow around the device, using a heat sink if necessary, and keeping the device away from other heat sources. The device's thermal pad should be connected to a solid ground plane to help dissipate heat. Additionally, the device's power dissipation should be calculated and kept within the recommended limits to prevent overheating.
The recommended input voltage range for the UCC39002DGK is 4.5V to 18V, and the recommended output voltage range is 1.2V to 15V. However, the device can operate with input voltages as low as 3.5V and output voltages as low as 0.9V, depending on the specific application requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC39002DGK Overview

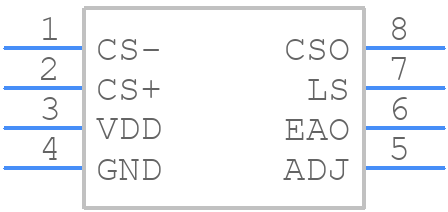

Use the download button to access the UCC39002DGK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC39,
or try a keyword search, such as Power Management Circuits
