Texas Instruments provides a recommended PCB layout in the application note SLUA271, which includes guidelines for component placement, trace routing, and thermal management to minimize noise and ensure reliable operation.
The input capacitor selection depends on the input voltage, output voltage, and output current requirements. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value of 10-22uF. Additionally, the capacitor's ESR (Equivalent Series Resistance) should be low enough to minimize voltage ripple.
The UCC3913D is rated for operation from -40°C to 85°C, but the maximum ambient temperature range may be limited by the specific application and the thermal management design. It's essential to ensure that the device does not exceed its maximum junction temperature (TJ) of 150°C.
Yes, the UCC3913D is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive grade devices, and it's also suitable for use in industrial and medical applications that require high reliability.
Common issues with the UCC3913D can often be attributed to poor PCB layout, inadequate input decoupling, or incorrect component selection. Troubleshooting involves checking the PCB layout, input voltage, output voltage, and component values. Texas Instruments provides application notes and technical support resources to help diagnose and resolve issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC3913D Overview

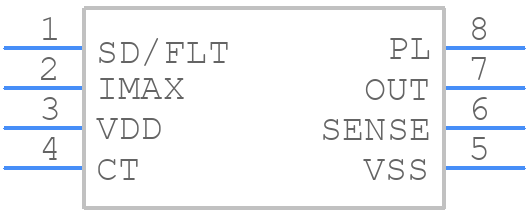

Use the download button to access the UCC3913D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC39,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
