Texas Instruments provides a recommended PCB layout in the application note SLUA271, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor selection depends on the input voltage, output voltage, and output current requirements. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value of 10-22 μF. Additionally, consider the capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) to ensure it can handle the high-frequency switching of the UCC3916DP.
The UCC3916DP has an operating ambient temperature range of -40°C to 85°C. However, the device's performance and reliability may degrade at higher temperatures, so it's essential to ensure proper thermal management and heat sinking to maintain a safe operating temperature.
Yes, the UCC3916DP is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive-grade devices and is suitable for use in harsh environments. However, it's essential to follow proper design and manufacturing guidelines to ensure the device meets the specific requirements of the application.
To troubleshoot issues with the UCC3916DP, start by verifying the PCB layout and component selection against the recommended guidelines. Check for proper input and output filtering, and ensure the device is properly decoupled. Use an oscilloscope to monitor the input and output waveforms, and look for signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC3916DP Overview

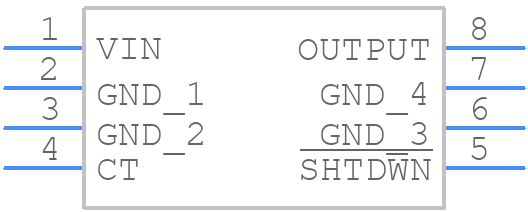

Use the download button to access the UCC3916DP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC39,
or try a keyword search, such as Power Management Circuits
