SELECTABLE THREE OR FOUR CELL OPERATION, OVERCURRENT PROTECTION
Adjustable Threshold:
NO
Analog IC - Other Type:
BATTERY PROTECTOR
JESD-30 Code:
R-PDSO-G16
Length:
4.9 mm
Number of Channels:
4
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
70 °C
Operating Temperature-Min:
-20 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SSOP
Package Equivalence Code:
SSOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, SHRINK PITCH
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Supply Current-Max (Isup):
0.04 mA
Supply Voltage-Max (Vsup):
20 V
Supply Voltage-Min (Vsup):
6.5 V
Supply Voltage-Nom (Vsup):
16 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
OTHER
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Width:
3.9 mm
UCC3957M-2 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the application note SLUA271, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value between 10uF to 100uF. Additionally, consider the capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) to ensure it can handle the high-frequency switching of the UCC3957M-2.
The UCC3957M-2 has an operating junction temperature range of -40°C to 150°C. However, the maximum ambient temperature depends on the specific application and the thermal management system used. As a general guideline, the ambient temperature should be kept below 85°C to ensure reliable operation and prevent overheating.
Yes, the UCC3957M-2 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive-grade ICs and is manufactured using a robust process that ensures high reliability and low defect rates. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific requirements of the application.
Troubleshooting issues with the UCC3957M-2 requires a systematic approach. Start by verifying the PCB layout and component selection, then check the input and output voltage, current, and frequency. Use an oscilloscope to observe the waveforms and identify any anomalies. Consult the datasheet and application notes for guidance on specific troubleshooting techniques and potential solutions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC3957M-2 Overview

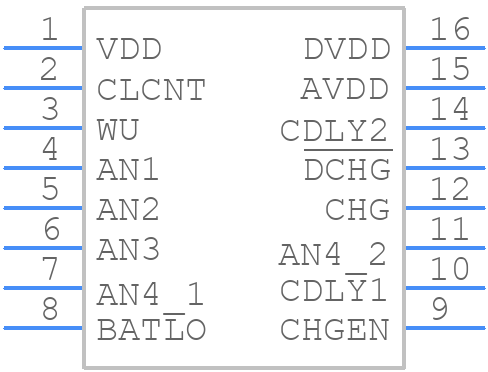

Use the download button to access the UCC3957M-2 schematic symbol, PCB footprint, and 3D model.
