A good PCB layout for the UCC5320SCDR involves keeping the input and output stages separate, using a star-ground configuration, and placing the device close to the power source. Additionally, using a 4-layer PCB with a solid ground plane and a separate power plane can help reduce EMI.
To ensure the UCC5320SCDR operates within its SOA, monitor the device's junction temperature, output current, and input voltage. Use thermal management techniques such as heat sinks or thermal interfaces to keep the junction temperature below 150°C. Also, ensure the output current does not exceed 2A and the input voltage is within the recommended range of 4.5V to 18V.
When selecting an output capacitor for the UCC5320SCDR, consider the capacitor's equivalent series resistance (ESR), capacitance value, and voltage rating. A low-ESR capacitor with a capacitance value between 10uF to 22uF and a voltage rating of at least 20V is recommended. The capacitor should also be able to handle the ripple current and have a low temperature coefficient.
To troubleshoot issues with the UCC5320SCDR, start by verifying the input voltage, output voltage, and output current. Check the PCB layout for any signs of noise or oscillations. Use an oscilloscope to measure the output voltage and current waveforms. Ensure the output capacitor is properly selected and the input voltage is within the recommended range. If issues persist, consult the datasheet and application notes for guidance.
The UCC5320SCDR has a thermal pad that must be connected to a thermal plane on the PCB to improve heat dissipation. Use a thermal interface material (TIM) to fill any gaps between the device and the heat sink. Ensure good airflow around the device and consider using a heat sink with a thermal conductivity of at least 1W/m-K. Additionally, minimize the thermal resistance of the PCB by using a thick copper layer and thermal vias.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC5320SCDR Overview

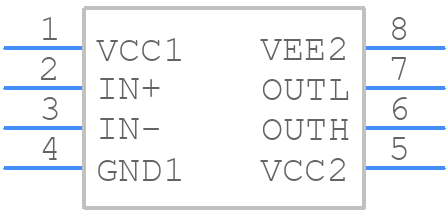

Use the download button to access the UCC5320SCDR schematic symbol, PCB footprint, and 3D model.
