UCC5350SBD - Texas Instruments

Description: 5A/5A, 3-kVRMS Single-Channel Isolated Gate Driver With Miller Clamp (M) or With Split Output (S)

Download UCC5350SBD Model

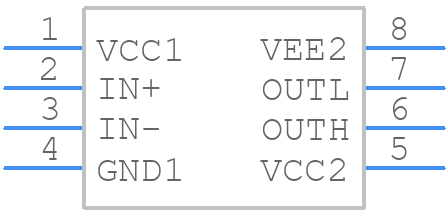

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UCC5350SBD - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G8)
click to zoom
3D Models
UCC5350SBD - Texas Instruments  - 3D model - Small Outline Packages - D (R-PDSO-G8)
click to zoom

UCC5350SBD Details

  • Manufacturer Part Number:

    UCC5350SBD

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-09-21

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; UNDER VOLTAGE

  • High Side Driver:

    NO

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Current-Max:

    10 A

  • Output Peak Current Limit-Nom:

    10 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.8 mm

  • Supply Voltage-Max:

    15 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    33 V

  • Supply Voltage1-Min:

    9.5 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.1 µs

  • Turn-on Time:

    0.1 µs

  • Width:

    5.85 mm

UCC5350SBD Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCC5350SBD involves keeping the input and output stages separate, using a star-ground configuration, and placing the input and output capacitors close to the device. Additionally, using a solid ground plane and minimizing trace lengths can help reduce EMI.
  • To ensure the UCC5350SBD operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Use thermal management techniques such as heat sinks or thermal interfaces to keep the junction temperature below 150°C. Also, ensure the input voltage is within the recommended range of 4.5V to 18V, and the output current is within the recommended range of 0A to 5A.
  • The recommended input capacitor value for the UCC5350SBD is 10uF to 22uF, with a voltage rating of 25V or higher. A low-ESR ceramic capacitor, such as an X5R or X7R type, is recommended due to its low equivalent series resistance and high reliability.
  • To troubleshoot issues with the UCC5350SBD, start by verifying the input voltage, output voltage, and output current are within the recommended ranges. Check the PCB layout for any signs of noise or oscillations, and ensure the input and output capacitors are properly sized and placed. Use an oscilloscope to measure the output voltage and current waveforms, and check for any signs of ringing or oscillations.
  • Yes, the UCC5350SBD is suitable for high-reliability and automotive applications. It is AEC-Q100 qualified, which means it has been tested and validated for use in automotive systems. Additionally, it is manufactured using a high-reliability process, and its design and testing are focused on ensuring high reliability and robustness.
