A good PCB layout for the UCC5390ECQDWVQ1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces to reduce parasitic inductance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper thermal management, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. The thermal pad of the device should be connected to a solid ground plane to help dissipate heat.
The recommended input capacitor value is 10uF to 22uF, and the type should be a low-ESR ceramic capacitor, such as X5R or X7R, to minimize voltage ripple and ensure stable operation.
To troubleshoot issues with the UCC5390ECQDWVQ1, check the input voltage, output voltage, and current draw. Verify that the input and output capacitors are properly connected and of the correct value. Check for any signs of overheating, such as excessive temperature or burning smells. Use an oscilloscope to check for any voltage ripple or oscillations.
Yes, the UCC5390ECQDWVQ1 is qualified for high-reliability and high-temperature applications. It is automotive-qualified and meets the AEC-Q100 standard. It can operate up to 150°C junction temperature, making it suitable for high-temperature applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC5390ECQDWVQ1 Overview

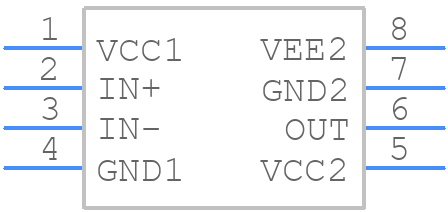

Use the download button to access the UCC5390ECQDWVQ1 schematic symbol, PCB footprint, and 3D model.
