- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for UCD3020RGZR
- Part Number UCD3020RGZR
- Manufacturer Texas Instruments
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFN50P700X700X100-49N
- Released Date Jan 12, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
UCD3020RGZR Details
-
Manufacturer Part Number:
UCD3020RGZR
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
QFN
-
Pin Count:
48
-
Country Of Origin:
Malaysia, Philippines
-
ECCN Code:
3A991.A.2
-
HTS Code:
8542.31.00.50
-
Manufacturer:
Texas Instruments
UCD3020RGZR Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the UCD3020RGZR Evaluation Module User's Guide (SLUUAC3) and the UCD3020RGZR Design Package (UCD3020RGZR-DP). It is recommended to follow these guidelines to ensure optimal performance and thermal management.
-
The UCD3020RGZR is a highly configurable device. Texas Instruments provides a software development kit (SDK) and a graphical user interface (GUI) tool, called the UCD3020RGZR Configurator, to help configure the device for specific applications. The configurator tool allows users to set up the device's registers, configure the power stages, and optimize the device's performance for their specific use case.
-
The UCD3020RGZR has a maximum operating temperature of 125°C (TJ). However, the device's performance and reliability may degrade at higher temperatures. It is recommended to follow the thermal management guidelines provided in the datasheet and the UCD3020RGZR Thermal Design Guide (SLUAAC4) to ensure optimal performance and reliability.
-
Texas Instruments provides a troubleshooting guide for the UCD3020RGZR in the UCD3020RGZR Troubleshooting Guide (SLUAAC5). The guide provides a step-by-step approach to identifying and resolving common issues, such as power-up sequencing, voltage regulation, and communication errors.
-
The recommended power-up sequence for the UCD3020RGZR is to first apply the input voltage (VIN) to the device, followed by the enable signal (EN). The device's internal power-on reset (POR) circuitry will then initialize the device and enable the output voltage regulators. The specific power-up sequence may vary depending on the application, so it is recommended to consult the datasheet and the UCD3020RGZR Application Note (SLUAAC3) for more information.
Trust Checks
System Verified
UCD3020RGZR Overview

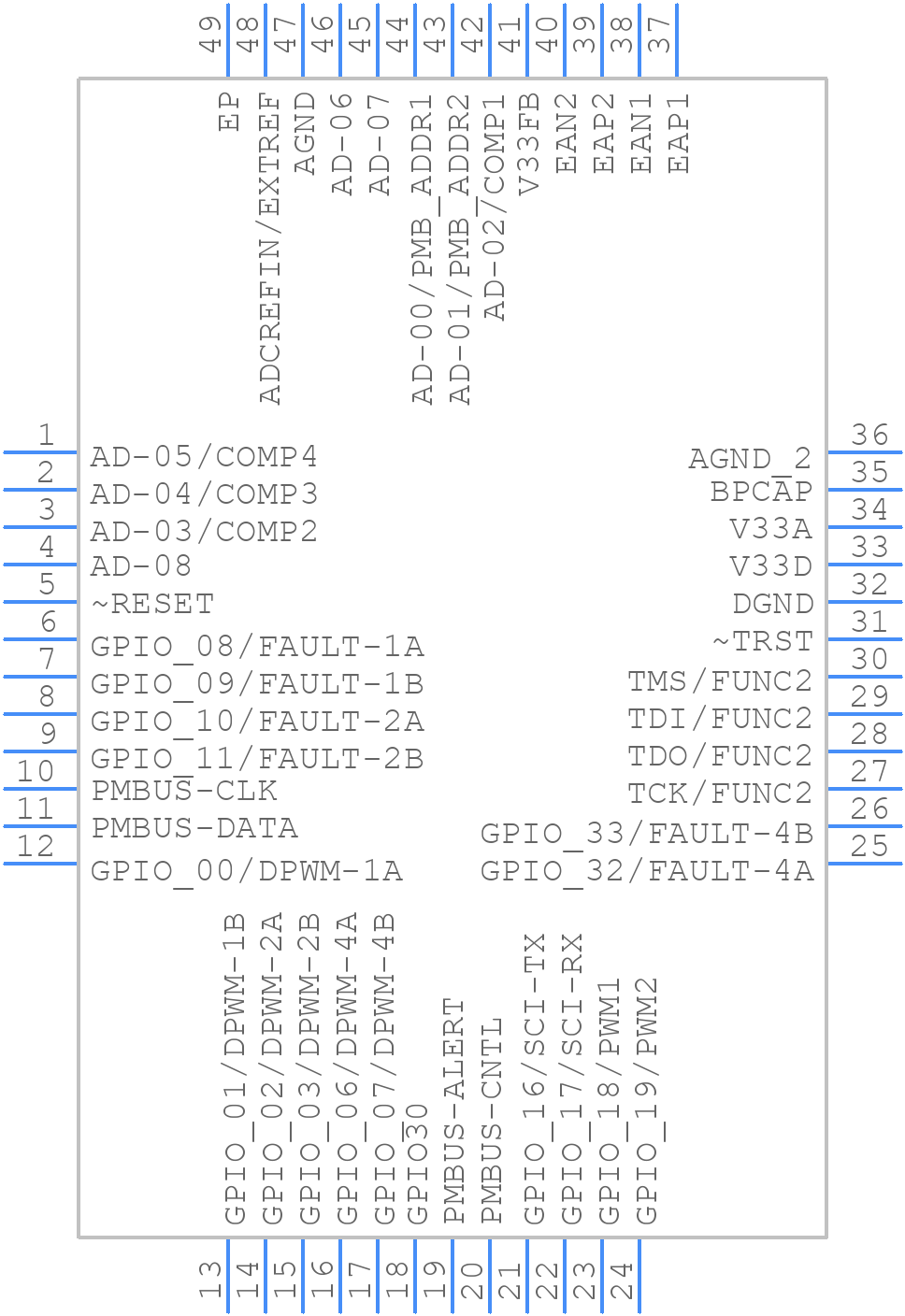

Use the download button to access the UCD3020RGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCD30,
or try a keyword search, such as Switching Regulator or Controllers
