Texas Instruments provides a recommended PCB layout in the UCD3020RGZT evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
The UCD3020RGZT can be configured using the Fusion Digital Power Designer software, which provides a graphical user interface for designing and configuring power supplies. The software allows users to select the desired output voltage, current, and other parameters, and generates a configuration file that can be loaded into the device.
The UCD3020RGZT has a maximum ambient temperature rating of 85°C, but it can be derated for higher temperatures. Texas Instruments provides a thermal derating curve in the datasheet to help designers determine the maximum power dissipation at higher temperatures.
Yes, the UCD3020RGZT can be used in a redundant power supply configuration. The device has a built-in ORing function that allows multiple devices to be connected in parallel, and it can also be configured to provide a redundant output voltage.
Texas Instruments provides a troubleshooting guide in the UCD3020RGZT datasheet and EVM user's guide, which includes common issues and their solutions. Additionally, the Fusion Digital Power Designer software provides a debug mode that allows users to monitor the device's status and debug issues.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
UCD3020RGZT Overview

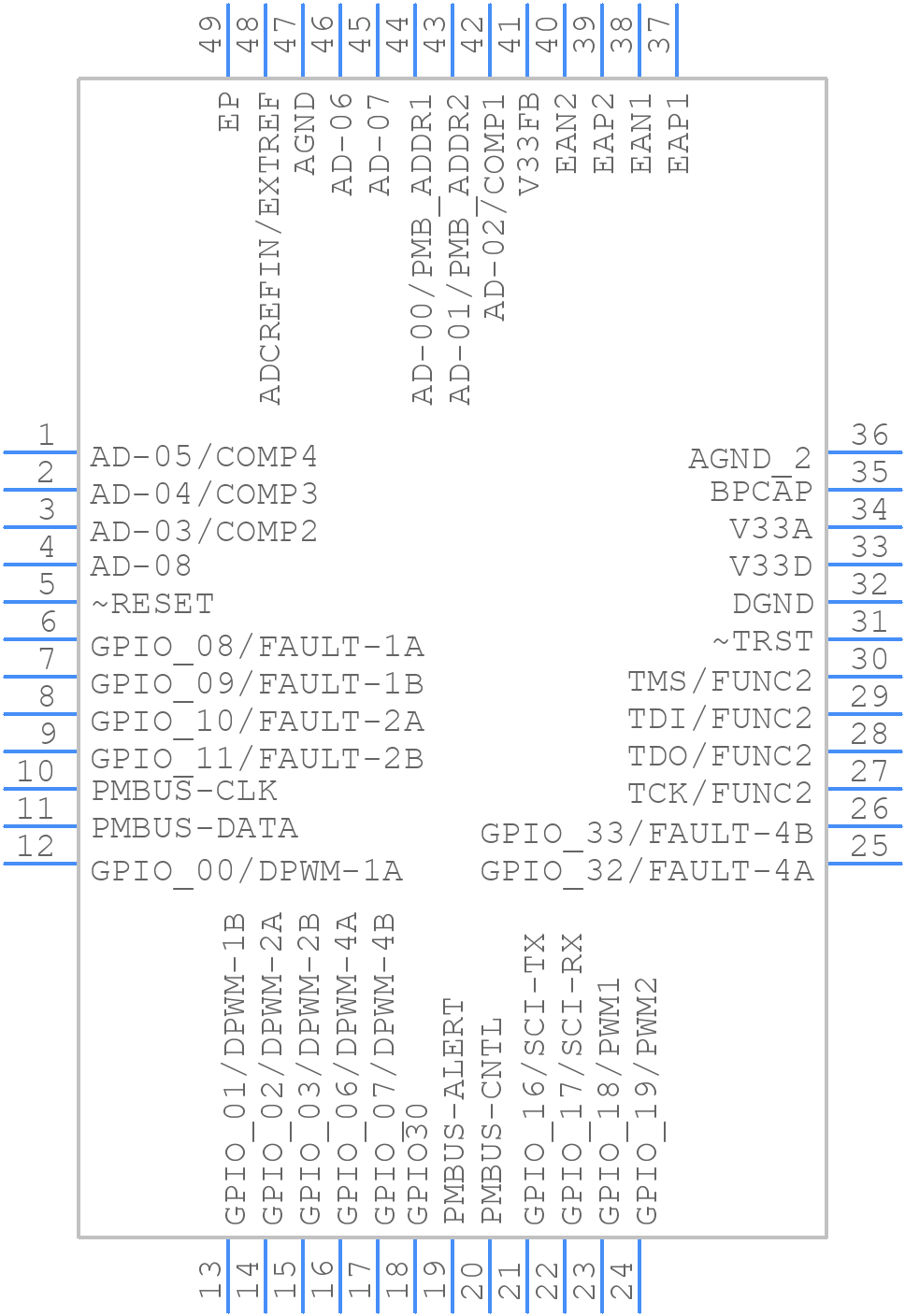

Use the download button to access the UCD3020RGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCD30,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
