UCD3138064RGZT - Texas Instruments

Description: Power Management Specialised - PMIC Highly-Intg Digital Cntlr 64kB Memory

Download UCD3138064RGZT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

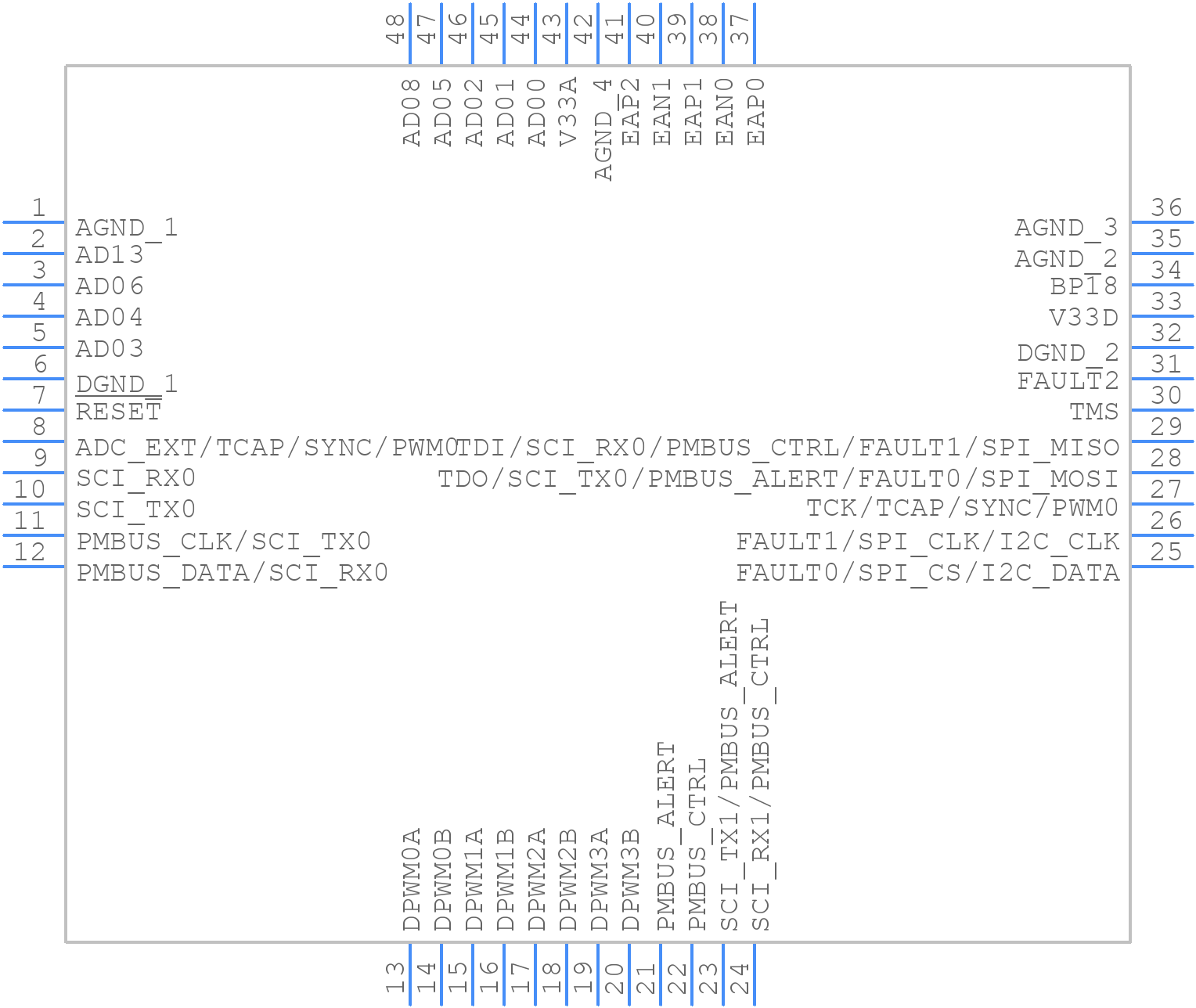

Symbol
UCD3138064RGZT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UCD3138064RGZT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UCD3138064RGZT
click to zoom
3D Models
UCD3138064RGZT - Texas Instruments - 3D model - Quad Flat No-Lead - UCD3138064RGZT
click to zoom

UCD3138064RGZT Details

  • Manufacturer Part Number:

    UCD3138064RGZT

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    DIGITAL POWER CONTROLLER

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Pitch:

    0.5 mm

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

UCD3138064RGZT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the UCD3138064RGZT Evaluation Module User's Guide (SLUUAC5) and the UCD3138064RGZT Design Package (SLPUUAC4). These resources provide detailed layout guidelines and Gerber files to ensure optimal performance.
  • The UCD3138064RGZT is a highly configurable device. Texas Instruments provides a software development kit (SDK) that includes a graphical user interface (GUI) tool, the UCD3138064RGZT Configurator, which allows users to configure the device for their specific application. The SDK also includes example code and documentation to help users get started.
  • The UCD3138064RGZT has a thermal pad on the bottom of the package that must be connected to a thermal plane on the PCB to ensure proper heat dissipation. Texas Instruments recommends using a thermal interface material (TIM) and a heat sink to further improve thermal performance. The UCD3138064RGZT Thermal Design Guide (SLPUUAC5) provides more detailed information on thermal management.
  • Texas Instruments provides a troubleshooting guide for the UCD3138064RGZT (SLPUUAC6) that covers common issues and their solutions. Additionally, the UCD3138064RGZT Forum on the Texas Instruments website allows users to ask questions and share knowledge with other users and Texas Instruments engineers.
  • The availability and lead time for the UCD3138064RGZT can vary depending on the region and distributor. Texas Instruments recommends checking with authorized distributors, such as Digi-Key or Mouser, for the latest availability and lead time information.
