UCD3138ARJAR - Texas Instruments

Description: Power Management Specialized - PMIC UCD3138A Highly Integrated Digital Controller for Isolated Power 40-VQFN -40 to 125

Download UCD3138ARJAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

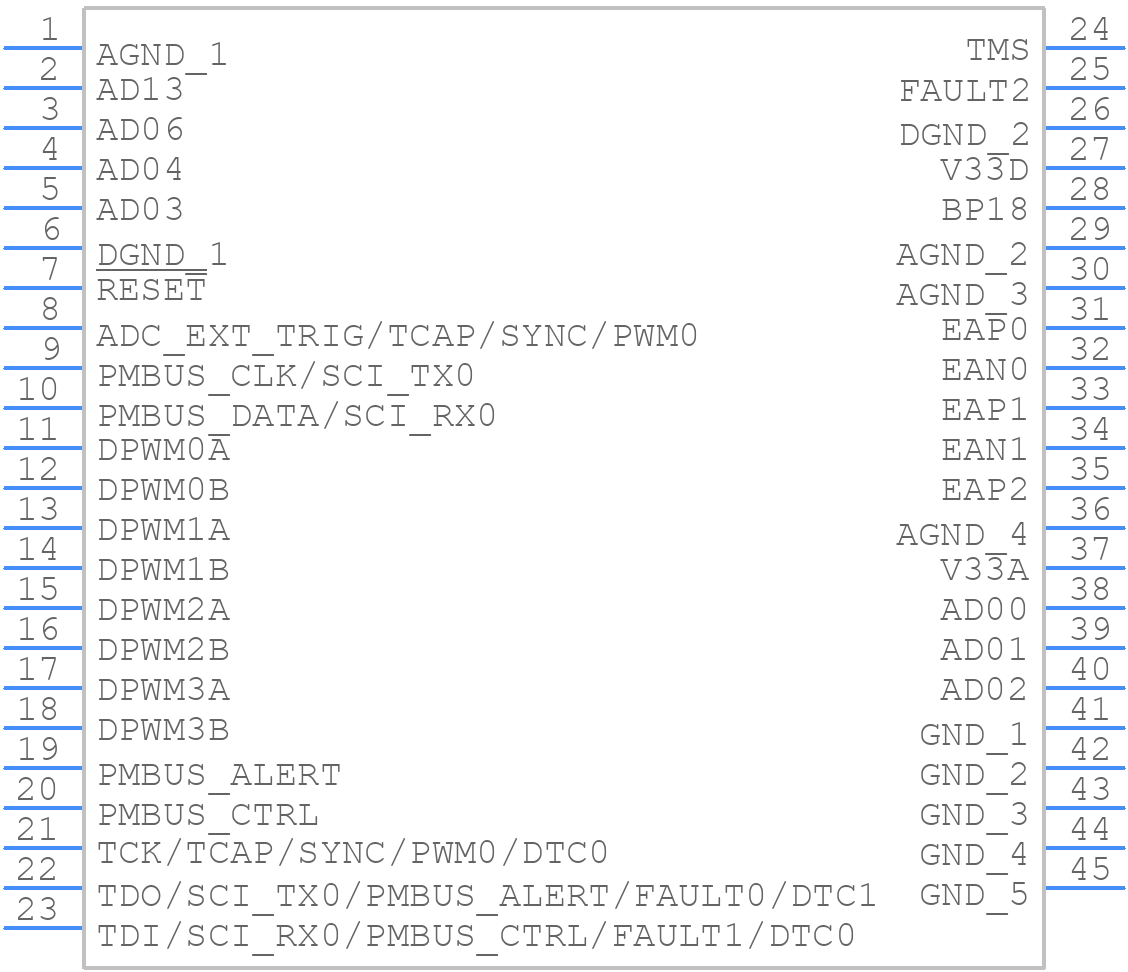

Symbol
UCD3138ARJAR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UCD3138ARJAR - Texas Instruments PCB footprint - Other - Other - RJA0040A
click to zoom
3D Models
UCD3138ARJAR - Texas Instruments - 3D model - Other - RJA0040A
click to zoom

UCD3138ARJAR Details

  • Manufacturer Part Number:

    UCD3138ARJAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    2016-10-13

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    DIGITAL POWER CONTROLLER

  • Control Mode:

    CURRENT/VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    3.6 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    8

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,0.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    105 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    2000 kHz

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

UCD3138ARJAR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the UCD3138ARJAR Evaluation Module User's Guide (SLUUAC3). It's essential to follow this layout to ensure proper thermal performance and minimize electromagnetic interference (EMI).
  • The UCD3138ARJAR is a highly configurable device. Texas Instruments provides a Power Architect tool that helps designers configure the device for their specific power supply application. The tool generates a configuration file that can be loaded into the device.
  • The UCD3138ARJAR has an operating temperature range of -40°C to 105°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range. It's essential to ensure proper thermal management and cooling to maintain optimal performance.
  • Texas Instruments provides a comprehensive troubleshooting guide in the UCD3138ARJAR User's Guide (SLUUAC2). The guide covers common issues, such as communication errors, and provides steps to diagnose and resolve problems.
  • While the UCD3138ARJAR is primarily designed for power supply applications, its flexibility and programmability make it suitable for other applications, such as motor control, lighting control, and industrial automation. However, it's essential to evaluate the device's performance and feasibility for the specific application.
