A good PCB layout for the UCD9081RHBT involves keeping the power and ground planes separate, using a solid ground plane, and placing the decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper configuration, refer to the UCD9081RHBT datasheet and user's guide, and follow the recommended configuration and programming guidelines. Additionally, use the TI Fusion Digital Power Designer software to generate a configuration file tailored to your specific application.
The UCD9081RHBT has a maximum junction temperature of 150°C. To ensure safe operation, ensure good airflow, use a heat sink if necessary, and follow the thermal design guidelines in the datasheet. Monitor the device temperature using the built-in thermal monitoring feature.
To troubleshoot issues, refer to the UCD9081RHBT datasheet and user's guide, and use the built-in diagnostic features such as the fault register and the status register. Use a logic analyzer or oscilloscope to monitor the device's signals and identify the root cause of the issue.
To ensure EMI and EMC compliance, follow the guidelines in the UCD9081RHBT datasheet and user's guide, and use proper PCB layout and shielding techniques. Use a common-mode choke and ferrite beads to reduce EMI emissions, and ensure the device is properly grounded.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCD9081RHBT Overview

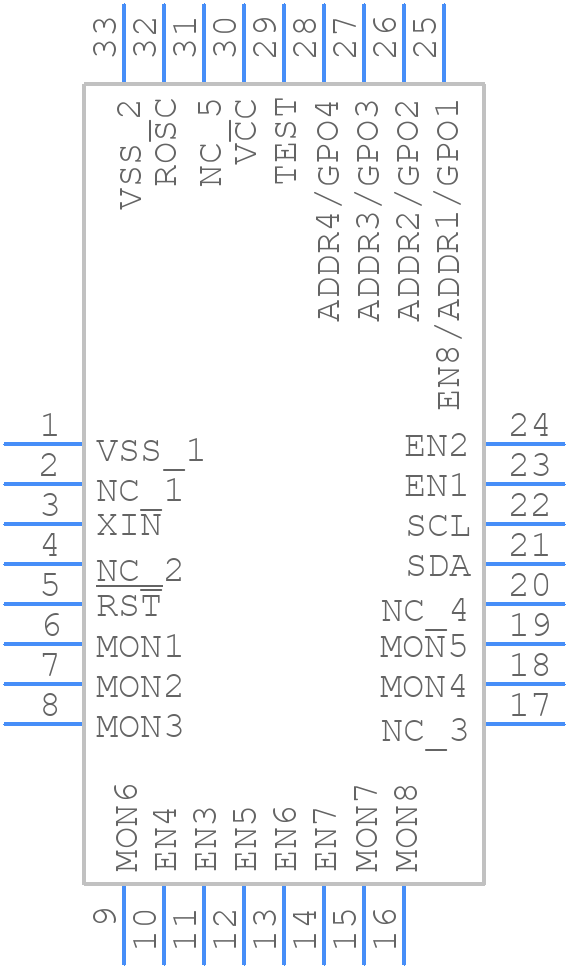

Use the download button to access the UCD9081RHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCD90,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
