TI recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer to minimize thermal impedance. A thermal via array under the device can also improve heat dissipation.
Use a reliable communication protocol like I2C or SPI, and ensure proper signal termination, pull-up resistors, and clock synchronization. Also, implement error detection and correction mechanisms to handle data transmission errors.
Choose capacitors with low ESR, high ripple current rating, and a voltage rating that exceeds the maximum input voltage. X5R or X7R ceramic capacitors are recommended. Ensure the capacitors are placed close to the device and connected with short, low-inductance traces.
Follow a controlled power-up sequence, starting with the input voltage, then the enable signal, and finally the clock signal. During power-down, reverse this sequence. Ensure a soft-start or ramp-up of the input voltage to prevent inrush currents.
Keep the UCD9090 and its associated components away from noise-sensitive areas. Use a solid ground plane, and ensure that high-frequency signals are routed away from the device. Implement proper shielding, and use EMI filters or common-mode chokes if necessary.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCD9090RGZR Overview

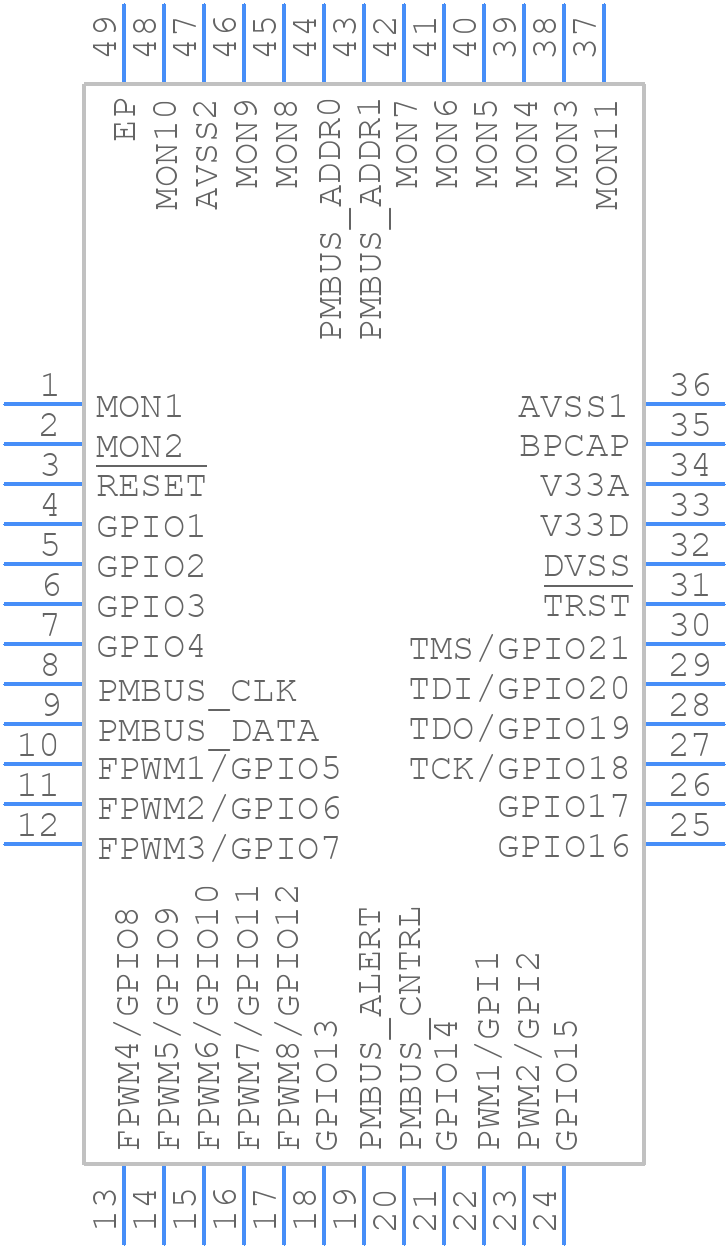

Use the download button to access the UCD9090RGZR schematic symbol, PCB footprint, and 3D model.
