UCD9222RGZT - Texas Instruments

Description: Digital PWM System Controller

Download UCD9222RGZT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

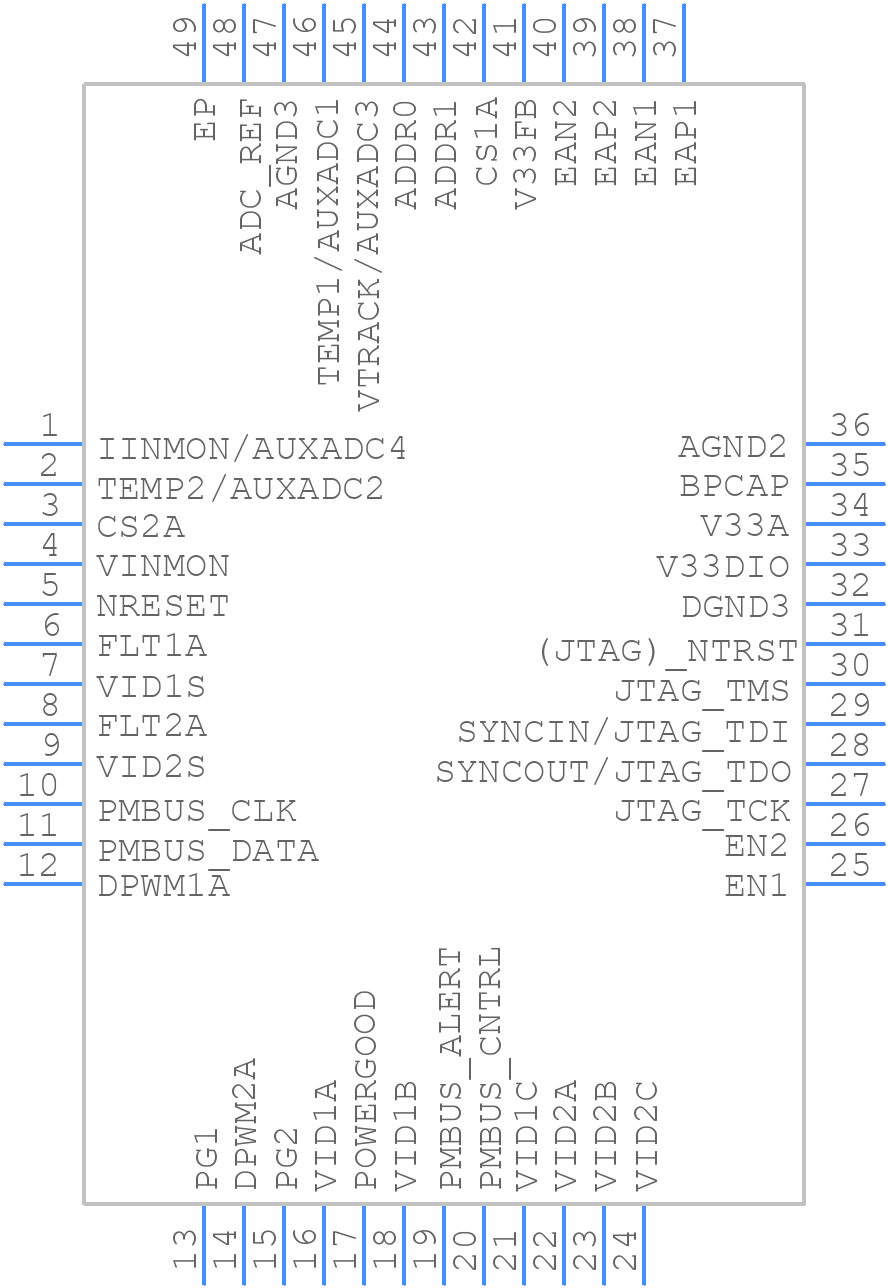

UCD9222RGZT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UCD9222RGZT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048A
click to zoom
3D Models
UCD9222RGZT - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ0048A
click to zoom

UCD9222RGZT Details

  • Manufacturer Part Number:

    UCD9222RGZT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    3.6 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    2000 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

UCD9222RGZT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane, separate power planes for analog and digital sections, and careful routing of sensitive signals is recommended. TI provides a reference design and layout guidelines in the datasheet and application notes.
  • TI provides a range of application notes and design guides that provide configuration examples and guidelines for specific use cases. Engineers can also use TI's WEBENCH online design tool to generate a customized design and configuration for their specific application.
  • Proper thermal management is crucial to ensure the device's reliability and performance. Engineers should consider the device's thermal resistance, PCB thermal design, and heat sink design to keep the junction temperature within the recommended range.
  • The device requires a stable power supply and proper biasing to ensure optimal performance. Engineers should follow the recommended power-up and power-down sequences, and ensure the input voltage and biasing resistors are correctly selected and implemented.
  • The UCD9222RGZT is a higher-performance, higher-power version of the UCD9220, with improved thermal performance and a wider input voltage range. The UCD9230 is a more integrated device with additional features, such as a built-in voltage regulator. Engineers should consult the datasheets and application notes to determine the best device for their specific application.
