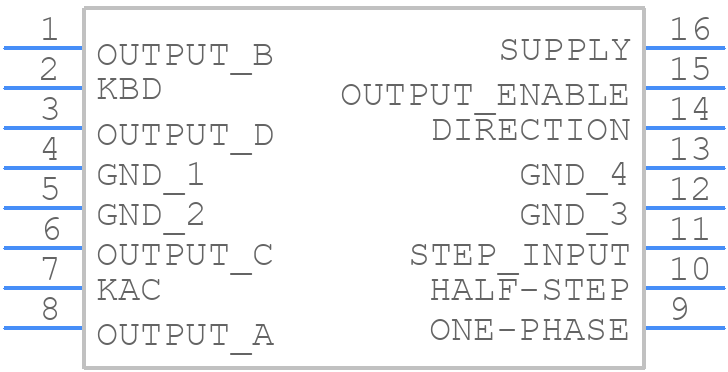

UCN5804B - Allegro Microsystems

UCN5804B Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the UCN5804B to minimize electromagnetic interference (EMI)?
  A good PCB layout practice is to keep the high-current paths short and away from sensitive analog circuits. Use a solid ground plane and keep the motor driver IC close to the motor terminals. Additionally, use a common mode choke or ferrite bead to filter the motor current.
• How do I protect the UCN5804B from back-EMF generated by the motor?
  Use a flyback diode (e.g., 1N4007) across the motor terminals to absorb the back-EMF. You can also add a capacitor (e.g., 100nF) in parallel with the diode to filter out high-frequency noise.
• What is the maximum allowable voltage drop across the UCN5804B's internal resistance?
  The maximum allowable voltage drop is approximately 2V, depending on the motor current and supply voltage. Exceeding this limit may cause the IC to overheat or malfunction.
• How do I determine the correct sense resistor value for current sensing?
  Choose a sense resistor value that provides a voltage drop of 0.5V to 1V at the maximum motor current. Use the formula: Rsense = (Vref / Imax) * (Rint / Rext), where Vref is the reference voltage, Imax is the maximum motor current, Rint is the internal sense resistor, and Rext is the external sense resistor.
• What is the purpose of the VREF pin, and how do I use it?
  The VREF pin provides a 2.5V reference voltage for the internal voltage regulator and current sense amplifier. Connect a 10kΩ resistor from VREF to GND to enable the internal voltage regulator. You can also use VREF as a reference for external circuits.
